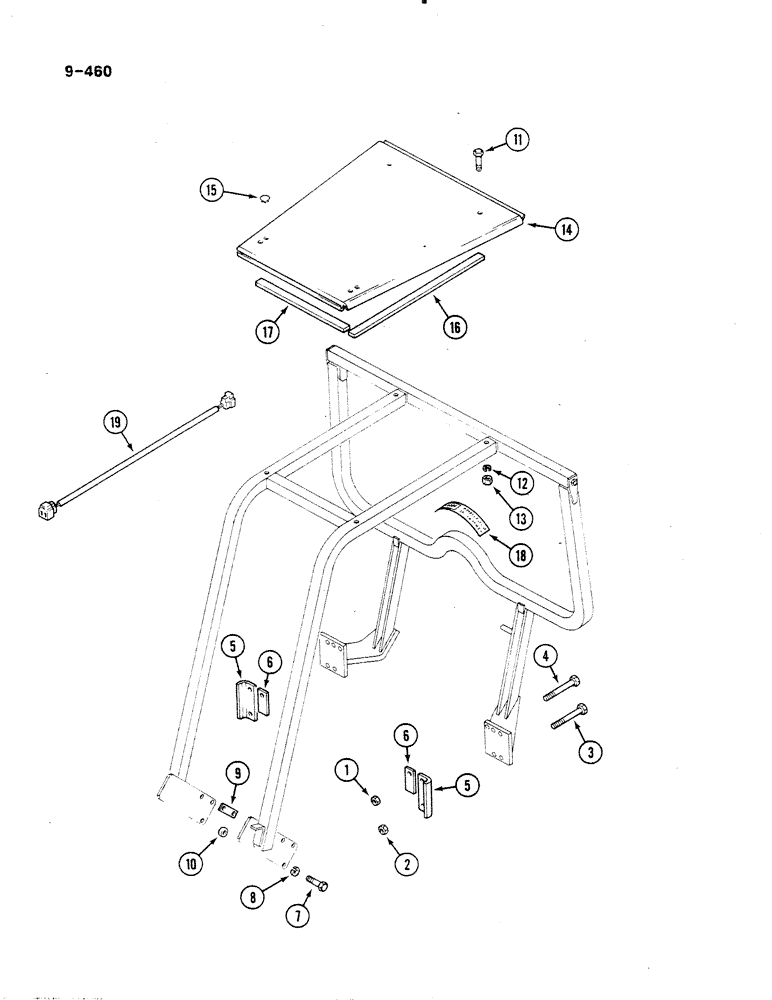

Запчасти Case IH 485 (9-460) - ROLL OVER PROTECTION FRAME, FOUR POST, P.I.N. 18001 AND AFTER (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

FRAME, R.O.P.S., 4 post

1шт.

1

22049R1

NUT,3/4"-10, G8

- hex, 3/4 inch NC, grade 8, row crop tractor axles

4шт.

2

21434R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8, utility tractor axles

8шт.

3

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

BOLT - hex, 5/8 NC x 8.8 inch, grade 8, utility tractor axles

8шт.

4

23702R1

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8, row crop tractor axles

4шт.

5

66062C1

PLATE

mounting

2шт.

6

66063C1

DECAL

SHIM

4шт.

7

21457R1

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

hex, 3/4 NC x 2-1/4 inch, grade 8

6шт.

8

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

6шт.

9

537308R1

PLATE

spacer

2шт.

10

537309R1

SPACER

2шт.

11

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

- hex, 5/8 NC x 3-1/4 inch, grade 8, tractors without canopy

4шт.

11

22228R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, tractors with canopy

4шт.

21759R1

WASHER

- flat, 0.656 x 2 x 0.105 inch, tractors with canopy

4шт.

21793R1

WASHER

- flat, 0.656 x 1.250 x 0.164 inch, tractors with canopy

4шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

21434R1

NUT,5/8"-11, G8

hex, 5/8 inch NC, grade 8

4шт.

14

66797C1

TOP

CANOPY

1шт.

15

432487

HOLE PLUG BUTTON,11/16"

PLUG button, 11/16 inch diameter hole

2шт.

16

118225C1

STRIP

canopy

3шт.

17

118226C1

STRIP

canopy

1шт.

18

65982C1

DECAL

caution instructions

1шт.

19

66064C1

HARNESS

extension, combination light

1шт.

70571C1

DECAL

R.O.P.S. caution instruction, English

1шт.

70572C1

DECAL

R.O.P.S. caution instruction, French

1шт.

70573C1

DECAL

R.O.P.S. caution instruction, Spanish

1шт.

70773C1

DECAL

seat belt caution instructions, English

1шт.

70774C1

DECAL

seat belt caution instructions, French

1шт.

70775C1

DECAL

seat belt and ROPS caution instruction, Spanish

1шт.
