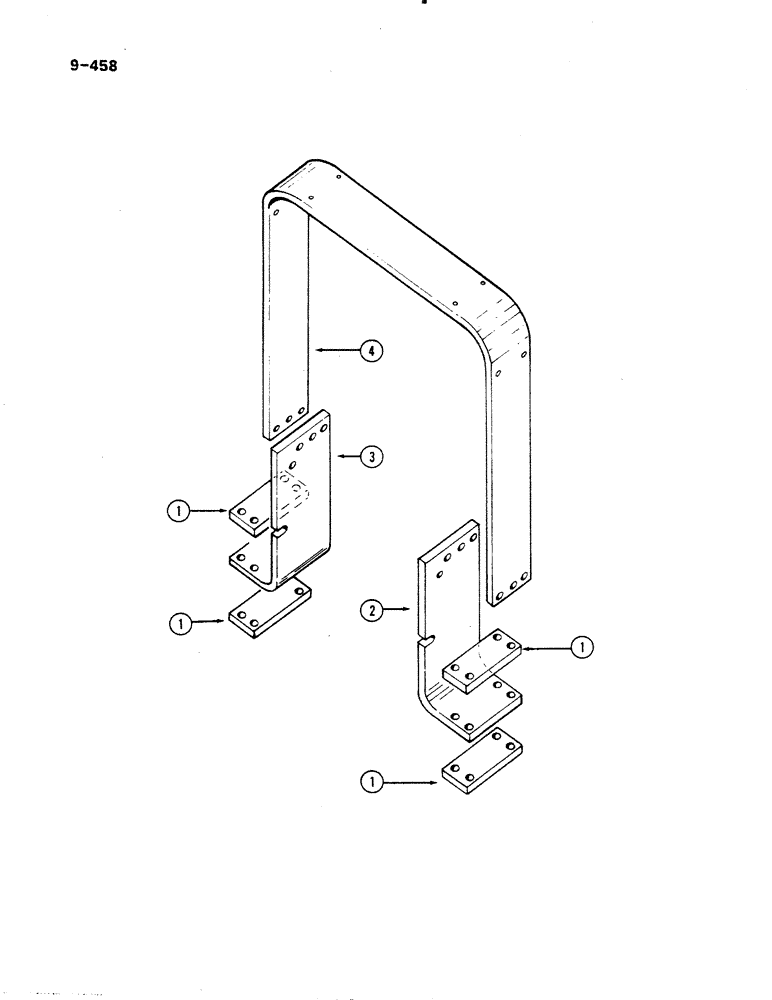

Запчасти Case IH 485 (9-458) - ROLL OVER PROTECTION FRAME (09) - CHASSIS/ATTACHMENTS

1

118309C1

PLATE

clamp

4шт.

1500799C1

BOLT,Spcl, Hex, 3/4" - 10 x 10", Type 8

hex, 3/4 NC x 10 inch, grade 8

8шт.

22049R1

NUT,3/4"-10, G8

hex, 3/4 inch NC, grade 8

8шт.

2

118306C1

SUPPORT

mounting, lower, left

1шт.

3

118307C1

SUPPORT

mounting, lower, right

1шт.

4

118377C2

FRAME

BAR, roll over protection structure

1шт.

118425C2

BOLT

hex, 7/8 NC x 2-3/4 inch

6шт.

23831R1

NUT,7/8"-9, G8

hex, 7/8 inch NC, type 8

6шт.

366460R1

CABLE CLIP

CLIP open, 0.25 diameter

2шт.

70571C1

DECAL

ROPS caution instruction, English

1шт.

70572C1

DECAL

ROPS caution instruction, French

1шт.

70573C1

DECAL

R.O.P.S. caution instruction, Spanish

1шт.

70773C1

DECAL

seat belt caution instructions, English

1шт.

70774C1

DECAL

seat belt caution instructions, French

1шт.

70775C1

DECAL

seat belt and ROPS caution instruction, Spanish

1шт.
