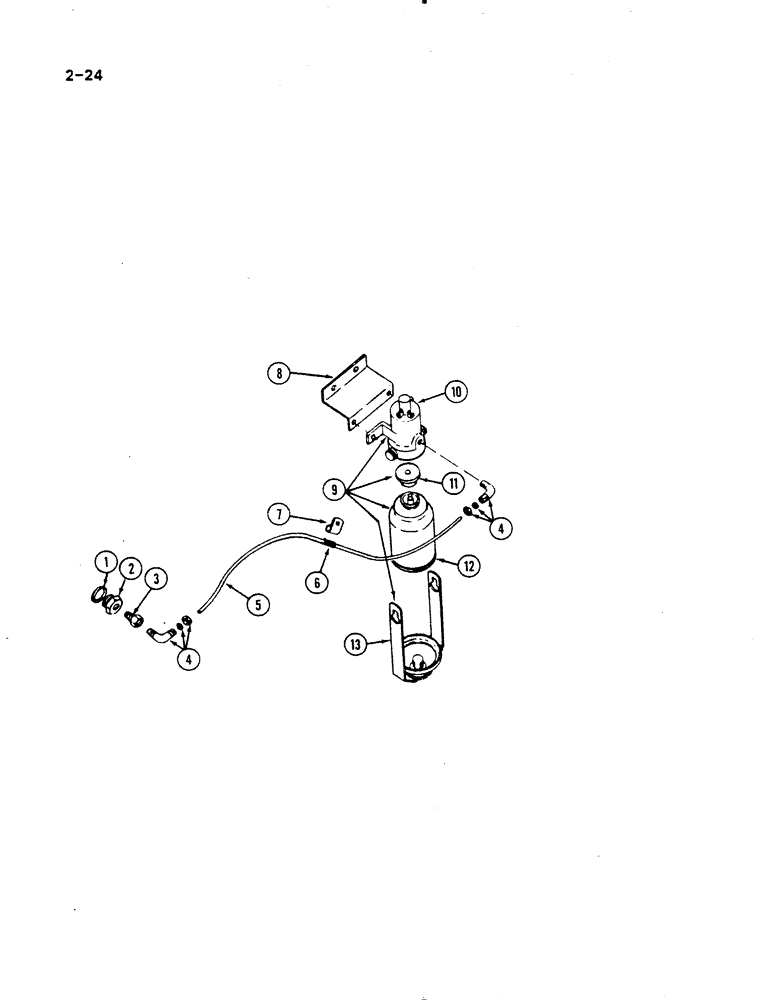

Запчасти Case IH 485 (2-024) - ETHER STARTING (02) - ENGINE

1

933945R1

SEALING RING,M23 x 28 x 2.5

RING packing

1шт.

2

3116081R1

JET

ADAPTOR ether nozzle

1шт.

3

269635R91

NOZZLE CAP

NOZZLE starting fluid

1шт.

4

140304

ELBOW

90 degree, 1/8 inch OD tube

2шт.

5

NSS

NOT SOLD SEPARAT

PIPE injection feed, 17-1/2 inch, cut from 995059R1

1шт.

5

995059R1

TUBE

PIPE bulk length, 20 foot roll

1шт.

6

3116374R1

SLEEVE

1шт.

7

3112817R1

CLAMP

support, includes bolt listed below

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

hex, 1/4 NC x 1/2 inch, grade 5

1шт.

8

535672R2

BRACKET

injection mounting

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

9

533231R92

SOLENOID

VALVE solenoid, ether injection, Includes: Ref. 10 - 13

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

hex, 5/16 NC x 7/8 inch, grade 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

10

NSS

NOT SOLD SEPARAT

INJECTOR ASSEMBLY

1шт.

11

395686R1

GASKET

ether starting injector

1шт.

12

385064R91

FLUID

ether starting, 12 ounce can

1шт.

13

121851C1

RETAINER

ether fluid cannister

1шт.
