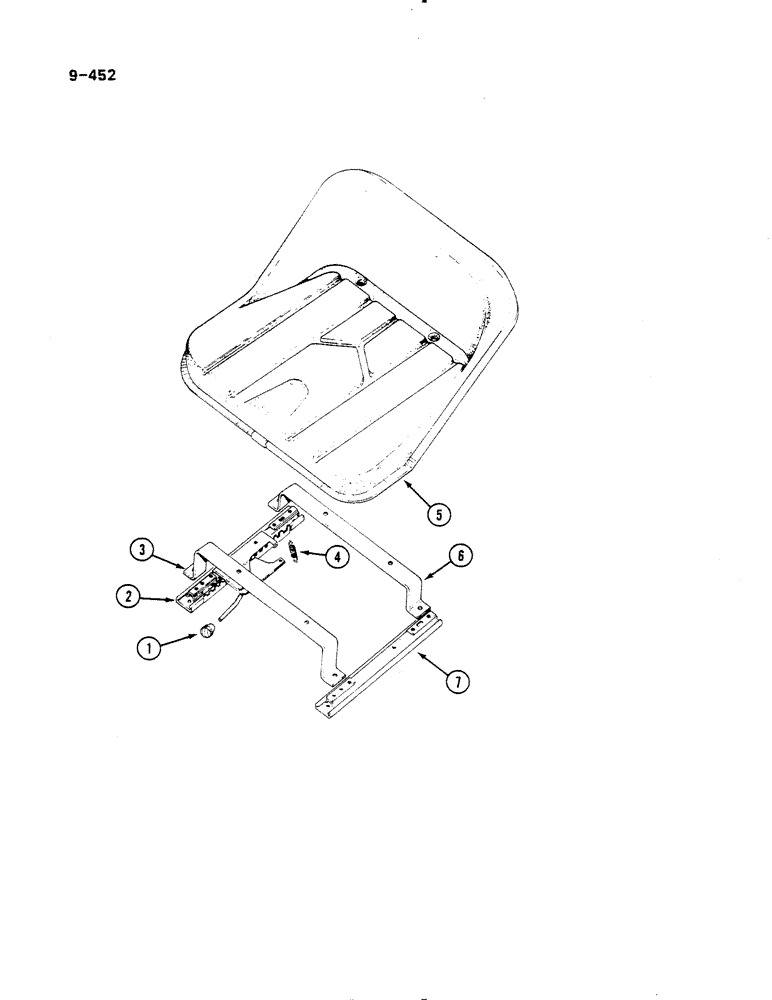

Запчасти Case IH 485 (9-452) - SEAT, NONSUSPENSION, LOW PROFILE TRACTORS (09) - CHASSIS/ATTACHMENTS

3121641R91

SEAT ASSY.

SEAT static, Includes Ref. 1 - 7

1шт.

1333091C1

SEAT

static, Orchard version, Includes Ref. 1 - 7

1шт.

160722

SCREW,Cross Pan Hd, 5/16" - 18 x 1 1/4"

4шт.

3123564R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

1

538693R11

KNOB

seat adjustment

1шт.

2

825199C91

SLIDE

RAIL slide, right, with adjuster

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

2шт.

3

3121642R1

SUPPORT

BRACKET mounting, front

1шт.

3

1333093C1

BRACKET

mounting, front, Orchard version

1шт.

120376

NUT,5/16"-18, G5

2шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

SEAT pan

1шт.

6

3121643R1

SUPPORT

BRACKET mounting, rear

1шт.

6

1333092C1

BRACKET

mounting, rear, Orchard version

1шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

6шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

825198C1

RAIL

slide, left

1шт.
