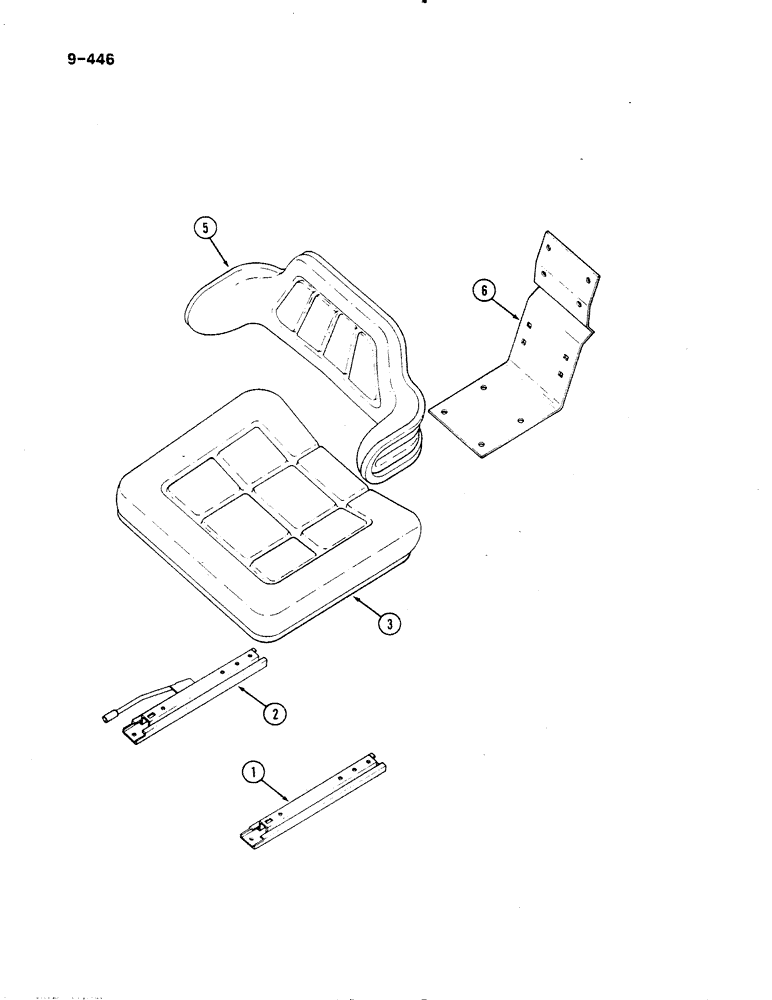

Запчасти Case IH 485 (9-446) - SEAT, LUXURY SUSPENSION PVC COVERED, GRAMMER 113182, SEAT AND SLIDES, PRIOR TO P.I.N. 18001 (09) - CHASSIS/ATTACHMENTS

3121423R92

SEAT

suspension, PVC, Includes: Ref. 1 - 6

1шт.

3123562R1

SPACER

seat

4шт.

3123564R1

LOCK WASHER

WASHER lock, 5/16 inch

4шт.

3123563R1

SCREW

fillister, cross recess, 5/16 x 1-1/2 inch

4шт.

1

3224898R1

SLIDE GUIDE

RAIL adjustable

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

slotted cheese, M8 x 16 mm, class 8.8, rail to plate

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER lock, serrated, 8 mm, rail to plate

1шт.

934676R1

LOCK WASHER,M8

WASHER lock, 8 mm, rear, rail to plate

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

slotted cheese, M8 x 20 mm, class 8.8, Serial Range: rail-plate

1шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER lock, serrated, 8 mm, rail to seat

2шт.

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

plain, rail to seat

2шт.

905424R1

WASHER,M10.5 x 25 x4

flat, 10 mm, rail to seat

2шт.

2

3224897R1

RAIL

adjustable, with handle

1шт.

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

slotted cheese, M8 x 16 mm, class 8.8, rail to plate

2шт.

934875R1

WASHER

front, Serial Range: rail-plate

1шт.

934894R1

SCREW,M8 x 20mm, Cl 8.8

slotted cheese, M8 x 20 mm, class 8.8, Serial Range: rail-seat

2шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

WASHER lock, serrated, 8 mm, rail to seat

2шт.

934674R1

WASHER,M10.5 x 30 x 2.5

flat, 10.5 x 30 x 2.5 mm, rail to seat

2шт.

905424R1

WASHER,M10.5 x 25 x4

flat, 10 mm, rear, rail to seat

1шт.

3

3125997R1

CUSHION, SEAT

CUSHION seat, PVC

1шт.

3125922R1

NUT

4шт.

5

3125996R1

BACKREST

CUSHION back, PVC

1шт.

6

3125995R1

FRAME

seat

1шт.
