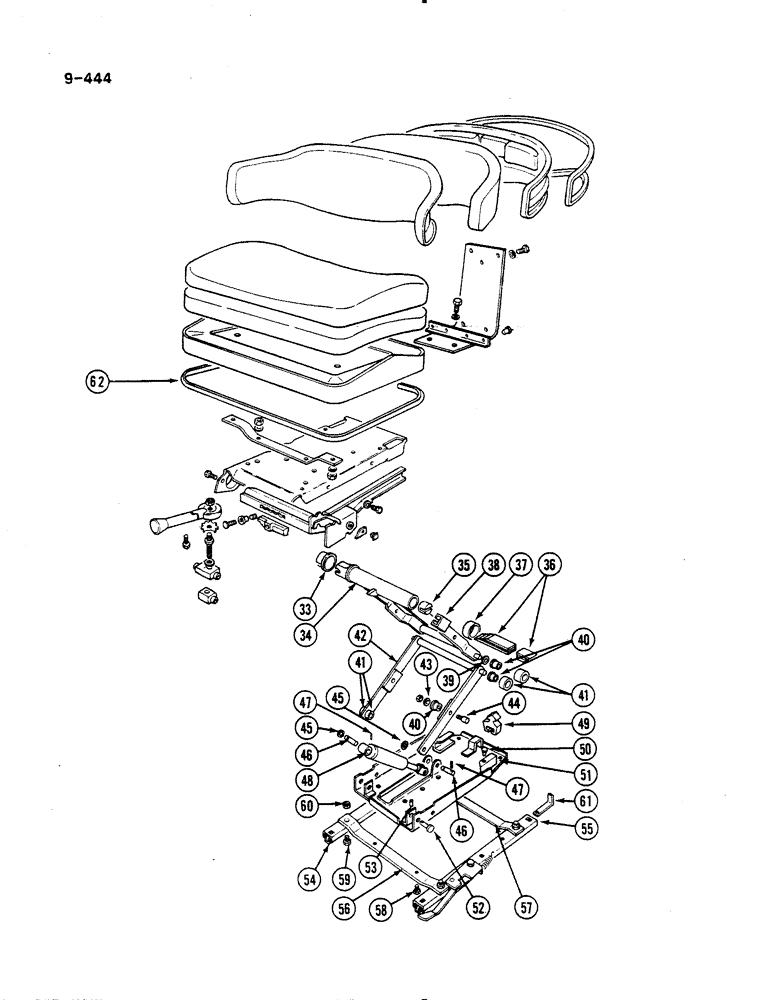

Запчасти Case IH 485 (9-444) - SUSPENSION SEAT, DELUXE, BOSTROM, WITH BEFORE AND AFTER HEIGHT ADJUSTMENT, BOSTROM (CONTD) (09) - CHASSIS/ATTACHMENTS

33

3123316R1

BUSHING

BEARING

1шт.

34

3123315R1

LEVER

center

1шт.

35

3220529R1

RETAINER

1шт.

36

3129922R1

BAR

torsion, set of 5

1шт.

37

3109331R1

FLANGED BEARING

BEARING

1шт.

38

3220519R1

STOP

limit

2шт.

39

538565R1

WASHER

4шт.

40

3123319R1

BUSHING

BEARING

8шт.

41

3123320R1

ROLLER BEARING

4шт.

42

3220517R1

ARM

LEVER outer

1шт.

43

934309R1

LOCK WASHER,M8

WASHER lock, M8

2шт.

44

3123321R1

PIVOT PIN

PIN pivot

2шт.

45

934309R1

LOCK WASHER,M8

WASHER lock, M8

2шт.

46

538578R1

PIN

damper

2шт.

47

538579R1

PIN, ROLL

PIN roll

2шт.

48

3123329R1

SHOCK ABSORBER

DAMPER complete

1шт.

49

3220516R1

STOP

BUMPER rubber

1шт.

50

3123308R1

BUMPER

BUTTON bumper

2шт.

51

3220524R1

PLATE

base

1шт.

52

3123318R1

PIVOT PIN

PIN pivot

2шт.

53

3125165R1

PIN, ROLL

PIN roll, 3 mm

2шт.

54

3123304R1

RAIL

slide, right, free

1шт.

55

3123303R1

RAIL

slide, left, adjustable

1шт.

56

3123305R1

BRACKET

STRAP mounting, front

1шт.

57

3123306R1

BRACKET

STRAP mounting, rear

1шт.

58

931237R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 8.8

countersunk, hex socket, M8 x 20 mm, class 8.8

4шт.

934109R1

NUT

hex, 4 mm

4шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

59

30001R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

hex, M8 x 16 mm, class 10.9

3шт.

60

43362

NUT,M8 x 1.25, Cl 10

lock, M8

4шт.

61

3123376R1

BRACKET

stop

2шт.

62

NSS

NOT SOLD SEPARAT

STRIP edging, order cushion 3123332R1

1шт.

3123310R1

DECAL

instructions

1шт.

3123311R1

DECAL

descriptive

1шт.

3123328R1

DECAL

serial No.

1шт.

3220518R1

PRODUCT GRAPHIC

DECAL, + or -

1шт.

3220526R1

DECAL

indicator

1шт.

3123335R1

DECAL

TS-3

1шт.

17084R1

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

2шт.

3220555R1

RETAINER

CLIP

2шт.
