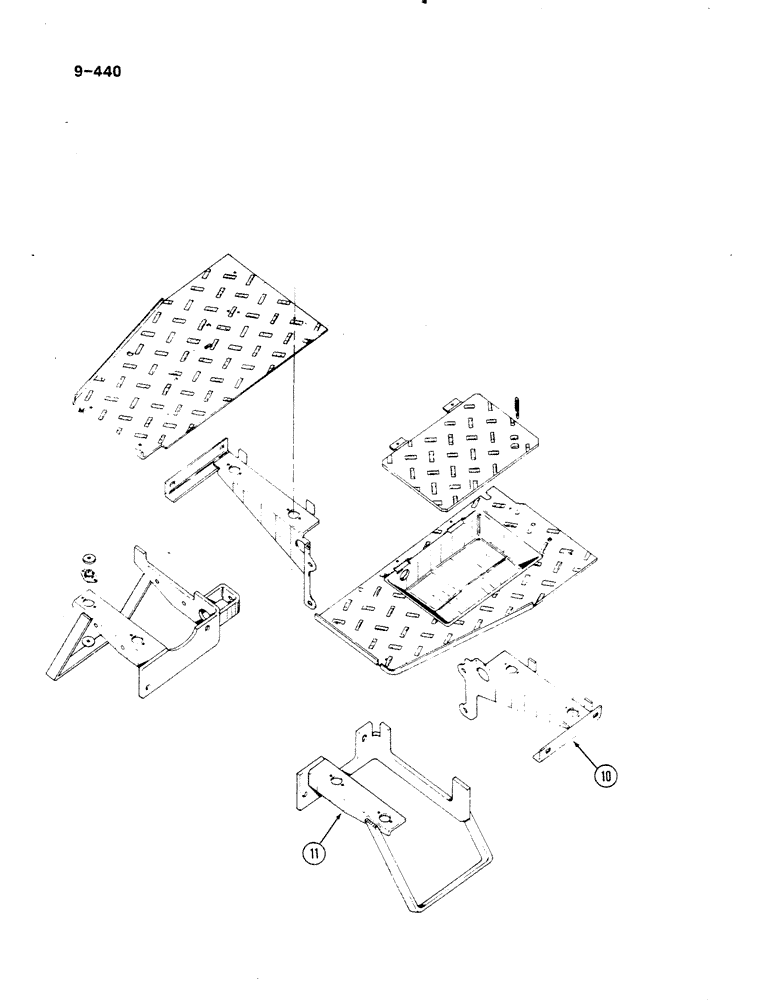

Запчасти Case IH 485 (9-440) - PLATFORMS AND SUPPORTS (CONTD) (09) - CHASSIS/ATTACHMENTS

10

3123702R1

SUPPORT

left, platform rear

1шт.

10

1333081C1

SUPPORT

left, platform rear, Orchard version

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

hex, 1/2 NC x 1-3/4 inch, grade 8, support to clutch housing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT carriage, 3/8 NC x 3/4 inch, support to fenders

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Support to fenders 3/8"

2шт.

102635

NUT,3/8"-16, G5

Support to fenders 3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051"), Support to fenders 3/8"

2шт.

11

3123694R3

SUPPORT

left, platform

1шт.

11

1333079

SUPPORT ASSEMBLY, platform, left , Orchard version

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Support to clutch housing Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Support to clutch housing 1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Support to clutch housing 3/8"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5, Support to clutch housing

1шт.
