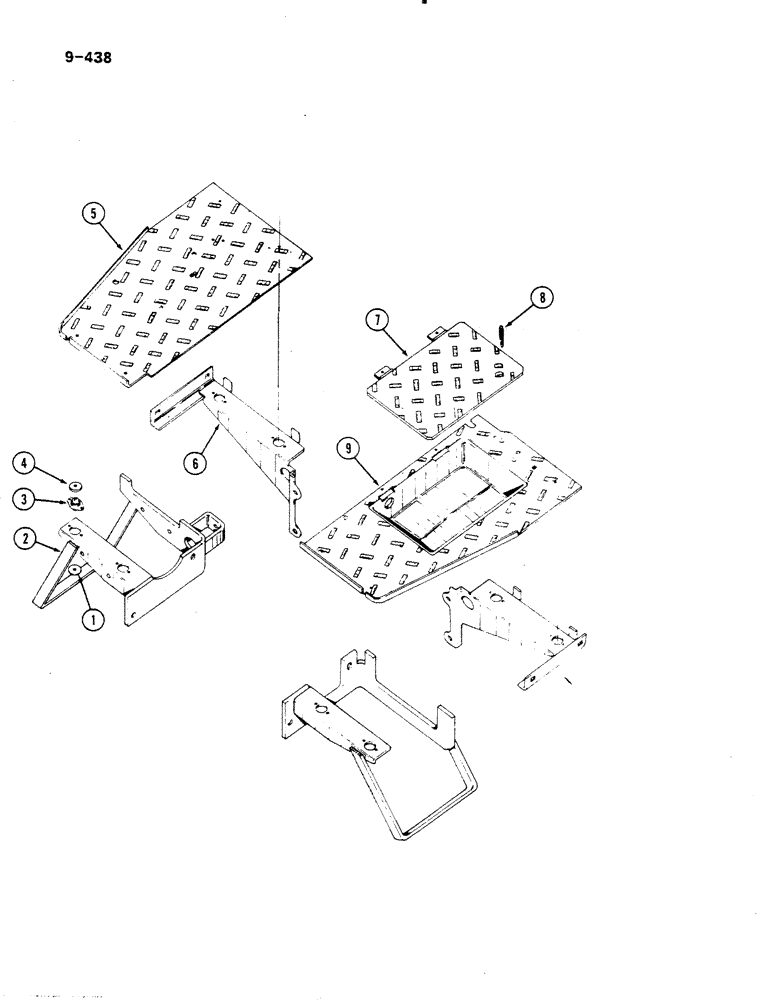

Запчасти Case IH 485 (9-438) - PLATFORMS AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

3123710R1

WASHER

snubbing

8шт.

121841

LOCK WASHER,#8

WASHER, LOCK, , Absorber to platform #8

8шт.

120622

NUT,#8-32

Absorber to platform #8-32

8шт.

2

1265128C1

SUPPORT

right, platform

1шт.

2

1333080C1

SUPPORT

right, platform, Orchard version

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5, Support to clutch housing

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Support to clutch housing 3/8"

1шт.

3

3123709R1

SHOCK ABSORBER

ABSORBER

8шт.

159287

SCREW,Cross Pan Hd, #6 - 32 x 3/8"

pan, cross recess, No. 6 x 3/8 inch, absorber to mounting bracket

16шт.

131044

LOCK WASHER

Lock, #6, Absorber to mounting bracket

16шт.

134530

NUT,Hex, #6 - 32

Absorber to mounting bracket #6-32

16шт.

4

3123710R1

WASHER

snubbing

8шт.

159675

SCREW,Cross Pan Hd, #8 - 32 x 1"

pan, cross recess, No. 8 x 1 inch, absorber to platform

8шт.

NLS

NO LONGER SERVICED

flat, 0.188 x 0.438 x 0.036 inch, Serial Range: absorber-platform

8шт.

5

3123690R1

PLATFORM

right

1шт.

5

1333077C1

PLATE

PLATFORM right, Orchard version

1шт.

6

3123703R1

SUPPORT

right, platform rear

1шт.

6

1333085C1

SUPPORT

right, platform rear, Orchard version

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

hex, 1/2 NC x 1-3/4 inch, grade 8, support to clutch housing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT carriage, 3/8 NC x 3/4 inch, support to fenders

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Support to fenders 3/8"

2шт.

102635

NUT,3/8"-16, G5

Support to fenders 3/8"-16, G5

2шт.

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051"), Support to fenders 3/8"

2шт.

7

538421R1

COVER ASSY

COVER tool box

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

slotted, machine pan, 1/4 NC x 5/8 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

528917R1

RING

finger pull

1шт.

9

1536026C1

PLATFORM

left, Replaces 3123689R1

1шт.

9

1333075C1

PLATE

PLATFORM left, Orchard version

1шт.
