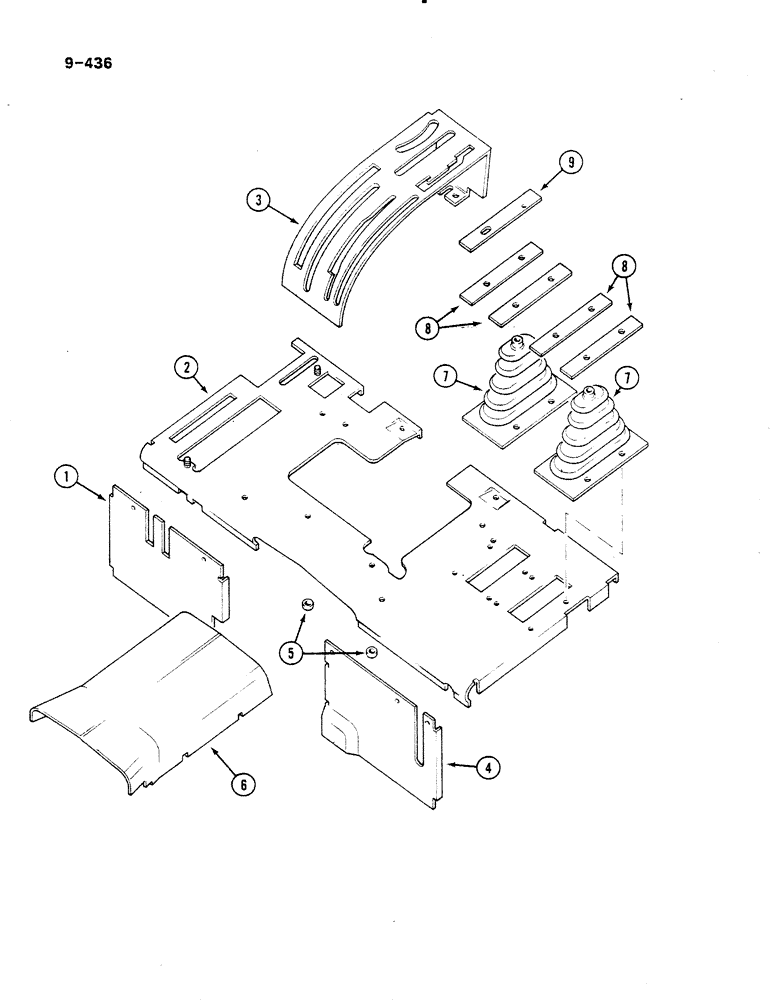

Запчасти Case IH 485 (9-436) - REAR PANELS (09) - CHASSIS/ATTACHMENTS

1

3125857R1

CHANNEL

rear vertical, right, Serial Range: -18001

1шт.

1

94161C1

PROTECTION PLATE

CHANNEL rear vertical, right, Start Serial: 18001

1шт.

1

1333130C1

CHANNEL

rear vertical, right, Orchard version

1шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

slotted, machine pan, 1/4 NC x 5/8 inch

2шт.

2

3129233R1

COVER ASSY

PLATFORM seat, Serial Range: -18001

1шт.

2

99656C2

PLATFORM ASSY.

PLATFORM seat, Start Serial: 18001

1шт.

2

1333128C1

PLATE

PLATFORM seat, Orchard version

1шт.

120368

NUT,5/16"-24, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

3125820R1

SLEEVE

PVC

6шт.

3

1331007C1

HOUSING

COVER lever, hitch control

1шт.

3

3121558R2

COVER ASSY

COVER lever, hitch control, MFD tractors, Serial Range: -18001

1шт.

3

1333094C1

HOUSING

COVER lever, hitch control, Orchard version

1шт.

4

528638R2

PROTECTION PLATE

CHANNEL rear vertical, left

1шт.

4

1333087C1

CHANNEL

rear vertical, left, Orchard version

1шт.

180018

CONNECTING LINK

hex, 1/4 NC x 5/8 inch, grade 5

3шт.

5

401941R1

SPACER

mounting, short

2шт.

6

66290C1

COVER

clutch housing

1шт.

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

slotted, pan head, 1/4 NC x 3/8 inch

4шт.

7

1502031C1

BOOT

control lever

2шт.

8

1502032C1

STRIP

retainer, boot

4шт.

27046R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 7/8"

SCREW tapping, pan cross recess, No. 8 x 7/8 inch

8шт.

9

1283389C1

STRIP

retaining, RH side of RH boot, tractors fitted with R.O.P.S.

1шт.
