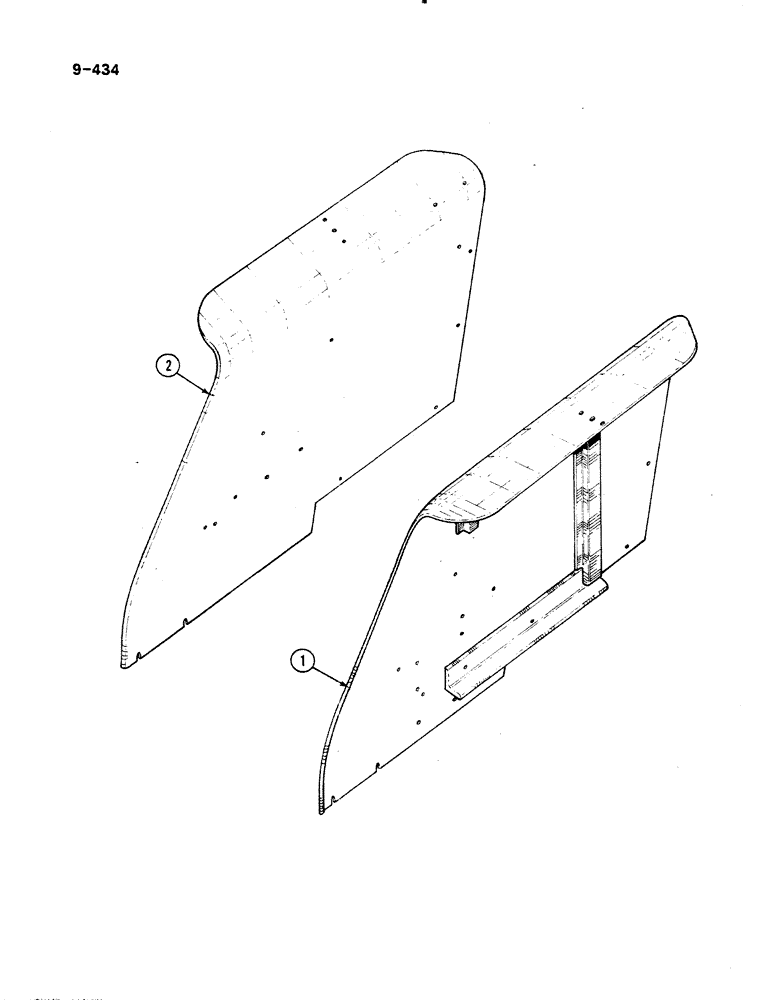

Запчасти Case IH 485 (9-434) - REAR FENDERS, CROWN TYPE (09) - CHASSIS/ATTACHMENTS

1

538639R3

FENDER ASSY.

FENDER left, lo crown, with warning decal

1шт.

1

1332979C1

FENDER

left,Orchard version

1шт.

2

530002R6

FENDER ASSY.

FENDER right, locrown

1шт.

2

1332980C1

FENDER ASSY.

FENDER right, Orchard version

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

rear top cover Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Rear top cover 5/16"

6шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

transmission shift control housing or draft control housing Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Transmission shift control housing or draft control housing 5/16"

2шт.

120376

NUT,5/16"-18, G5

Transmission shift control housing or draft control housing 5/16"-18, G5

2шт.

181163

SCREW,Hex, 1/2" - 13 x 1 1/4", Gr 5

BOLT hex, 1/2 NC x 1-1/4 inch, grade 5, axle carrier

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5, parking brake bracket

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, grade 5, parking brake bracket

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Parking brake bracket 3/8"

3шт.

3113657R1

PLUG

4шт.

3113430R1

PLUG

blanking, side and tail light

2шт.

3113430R1

PLUG

blanking, fender, left

3шт.

3112888R1

PLUG

blanking, fender, right

1шт.

99964C1

PLUG

blanking, fender

6шт.

531625R1

GROMMET

2шт.

3125820R1

SLEEVE

PVC.

3шт.

3121498R91

FENDER

lo flat, top, for code 1522 or 9446

1шт.

3125832R1

LIGHTS, for code 1522 or 9446

1шт.

3121490R91

PANEL, INSTRUMENTS

PANEL instrument, for code 1552 or 9446

1шт.
