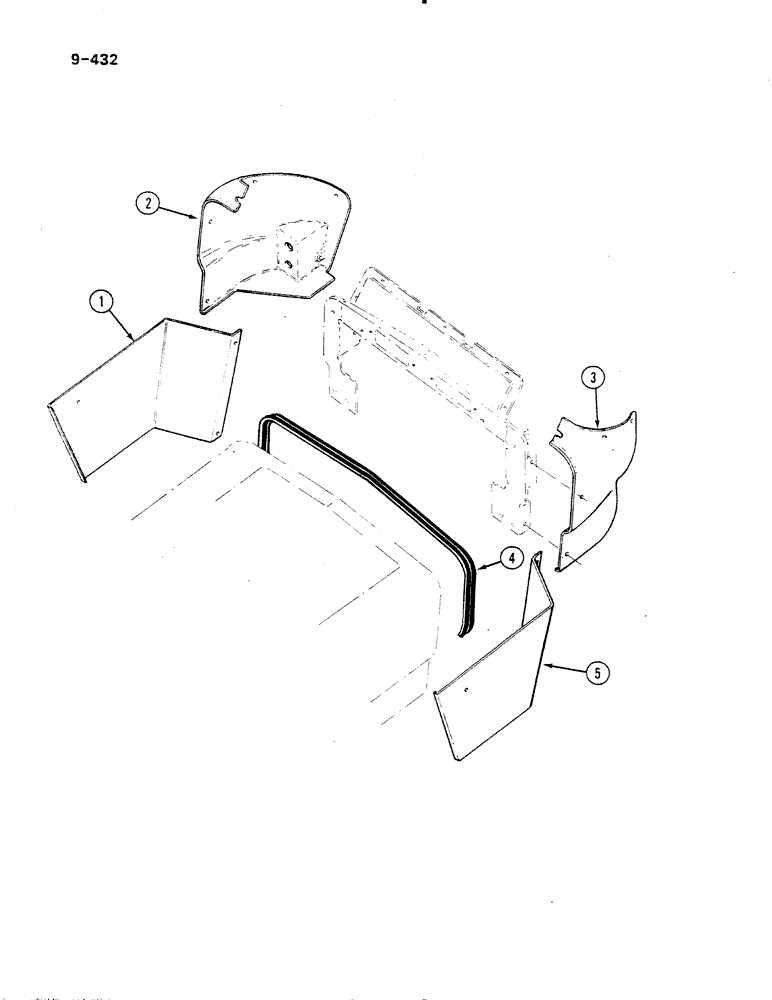

Запчасти Case IH 485 (9-432) - INSTRUMENT PANEL SIDE HOUSING (09) - CHASSIS/ATTACHMENTS

1

3121638R1

GUARD

PANEL lower rear side, right

1шт.

1

1333048C1

PANEL

lower rear side, right, Orchard version

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

cap, 1/4 NC x 5/8 inch

3шт.

2

3121712R3

HOUSING

instrument panel side, right

1шт.

3121715R1

SPRING NUT

reverse

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW Phillips pan, tapping, No. 10 x 5/8 inch

3шт.

3

3121711R3

HOUSING

instrument panel, side, left

1шт.

3121715R1

SPRING NUT

reverse

3шт.

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW tapping, Phillips pan, No. 10 x 5/8 inch

3шт.

4

NSS

NOT SOLD SEPARAT

SEAL hood sheet, 45.7 inch, cut from 1265280C1

1шт.

1265280C1

SEAL

rubber, bulk length, 4 foot roll

1шт.

5

3121637R1

GUARD

PANEL side, lower rear, left

1шт.

5

1333047C1

PANEL

side, lower rear, left, Orchard version

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

cap, 1/4 NC x 5/8 inch

3шт.

1536456C1

CLUSTER, INSTR.

PANEL instrument, new, per tech. catalog, for component breakdown see 495 tractor, Figure 4-16, Ref. 2 and Figure 4-18

1шт.
