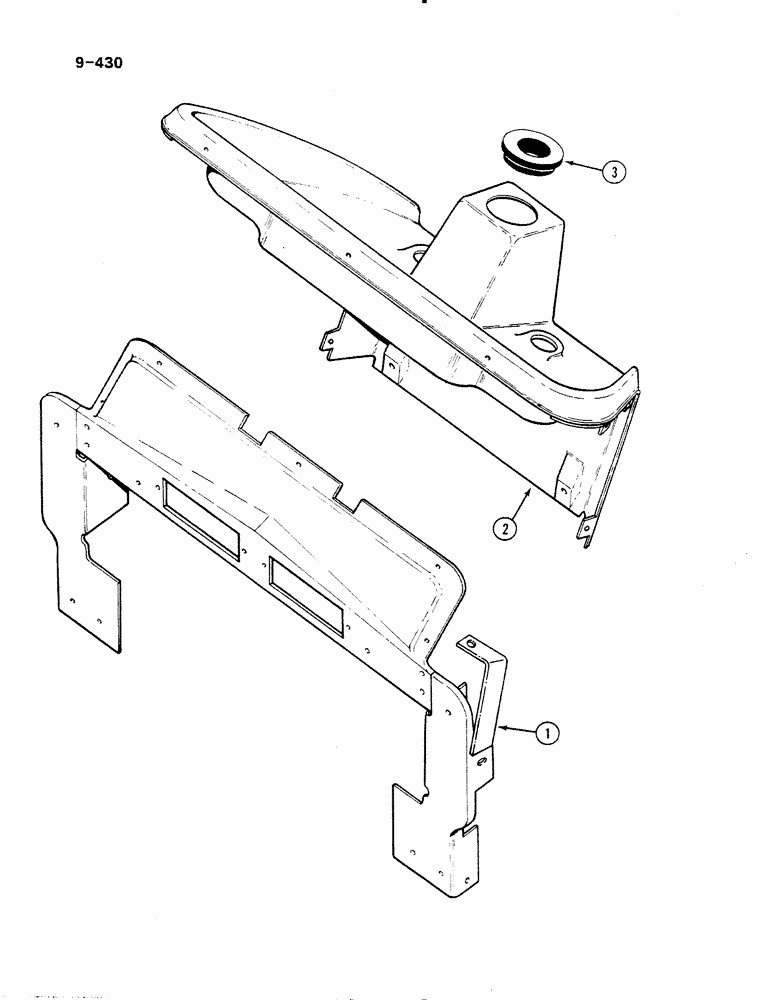

Запчасти Case IH 485 (9-430) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
3125771R91
SPARE PART
PLATE support, instrument panel, complete with 3121684R4 and 3123171R1, includes back plate and captive nut listed below
1шт.
For P/N 3125771R92 use P/N 1333010C1
1шт.
1
1333069C1
PLATE
support, instrument panel, complete with 3123171R1, includes back plate and captive nut listed below
1шт.
For P/N 1333069C1 use P/N 1970766C1 plate assembly with new shut off cable P/N 1333000C1
1шт.
3121684R4
PLATE
back, instrument panel
1шт.
3123171R1
NUT
captive
7шт.
24394R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"
SCREW, Phillips pan, tapping, No. 10 x 5/8 inch
4шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
- hex, 5/16 NC x 5/8 inch, grade 5, Instrument panel back plate to battery tray
2шт.
9635082
NUT,5/16" - 18, Gr 5
hex, 5/16 inch NC, grade 5, instrument panel back plate to battery tray
2шт.
179833
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd
Instrument panel back plate to battery tray Hex, 3/8"-16 x 1/2", G5, Full Thd
4шт.
2
1500974C3
PANEL, INSTRUMENTS
HOUSING instrument panel
1шт.
160536
SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"
Instrument panel to steering support Cross Pan Hd, 1/4"-20 x 5/8"
2шт.
23994R1
SELF-TAP SCREW,Hex Hd, #10 x 5/8"
SCREW, SELF TAPPING, , Instrument panel to instrument back plate assembly Hex Hd, #10 x 5/8"
3шт.
120391
WASHER,#10
flat, 0.219 x 0.5 x 0.036 inch, instrument panel to instrument back plate assembly
3шт.
3125816R1
LENS
green, translucent
1шт.
3
3123366R1
PLUG
BOOT rubber, steering column
1шт.
3113429R1
PLUG
blanking, TA control
1шт.
538239R1
PLUG
blanking, horn switch
1шт.
538240R1
PLUG
blanking, cgarette lighter
1шт.
3114406R1
PLUG
blanking, ignition
1шт.
3113429R1
PLUG
blanking, park brake warning
1шт.
3112888R1
PLUG
blanking, headlight dip switch
1шт.
3112888R1
PLUG
blanking, TA switch, Start Serial: 18001
1шт.
245918C1
LENS
PLUG blanking, MFD switch, Start Serial: 18001
1шт.
Выбрано товаров: 25
