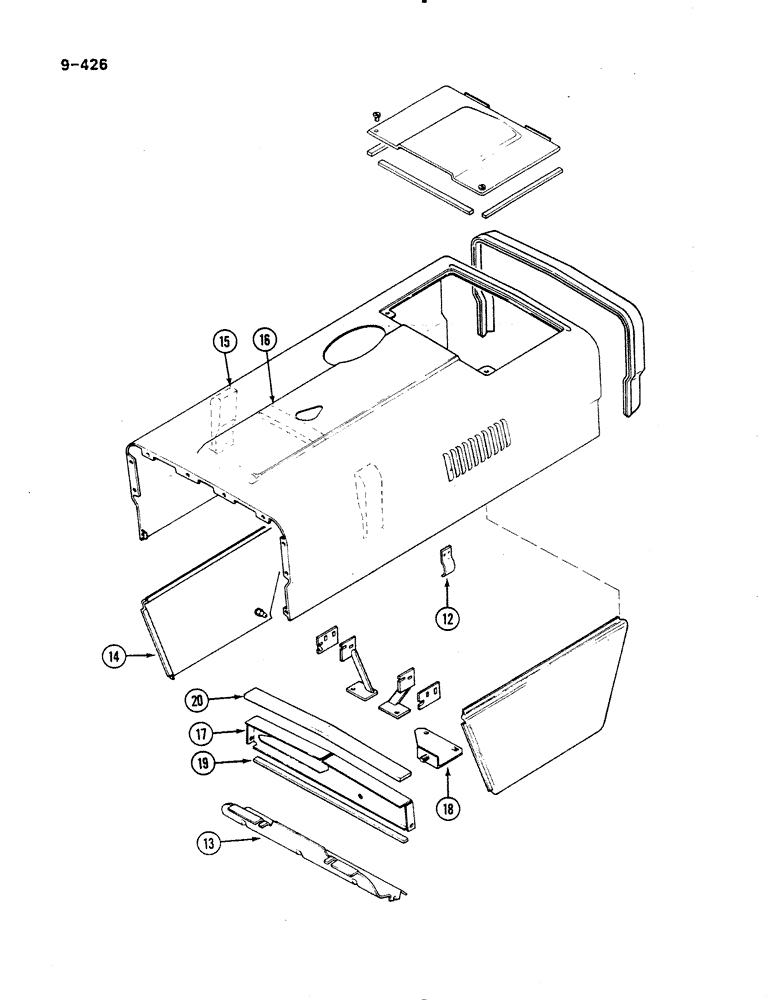

Запчасти Case IH 485 (9-426) - HOOD AND PANELS (CONTD) (09) - CHASSIS/ATTACHMENTS

12

94367C1

SPRING

RETAINER side panel

2шт.

30267R1

NUT,M4, Cl 8

hex, 4 mm, class 10

4шт.

13

3121397R2

BAFFLE

upper

1шт.

30209R1

WASHER,M6 x 13 x 2, HT

plain, 6 mm

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30381R1

NUT,M6 x 1, Cl 10

NUT hex, M6

4шт.

14

94406C1

PANEL

side, right

1шт.

14

99443C1

PANEL

side, right, MFD tractors, Start Serial: 18001

1шт.

14

1333133C1

PANEL

side, right, A

1шт.

15

98935C1

SEAL

foam, hood corner

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL hood center, 200 mm, cut from bulk length

1шт.

17

98906C1

DEFLECTOR

BAFFLE upper, air

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

18

98911C1

BRACKET

mounting, upper baffle

1шт.

3118801R1

SPACER

insulation

1шт.

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

2шт.

120376

NUT,5/16"-18, G5

1шт.

19

98933C1

ADHESIVE STRIP

SEAL baffle lower, 425 mm, cut from bulk length, Replaces NSS

1шт.

20

98932C1

ADHESIVE STRIP

SEAL upper, baffle to hood, 465 mm, cut from bulk length, Replaces NSS

1шт.
