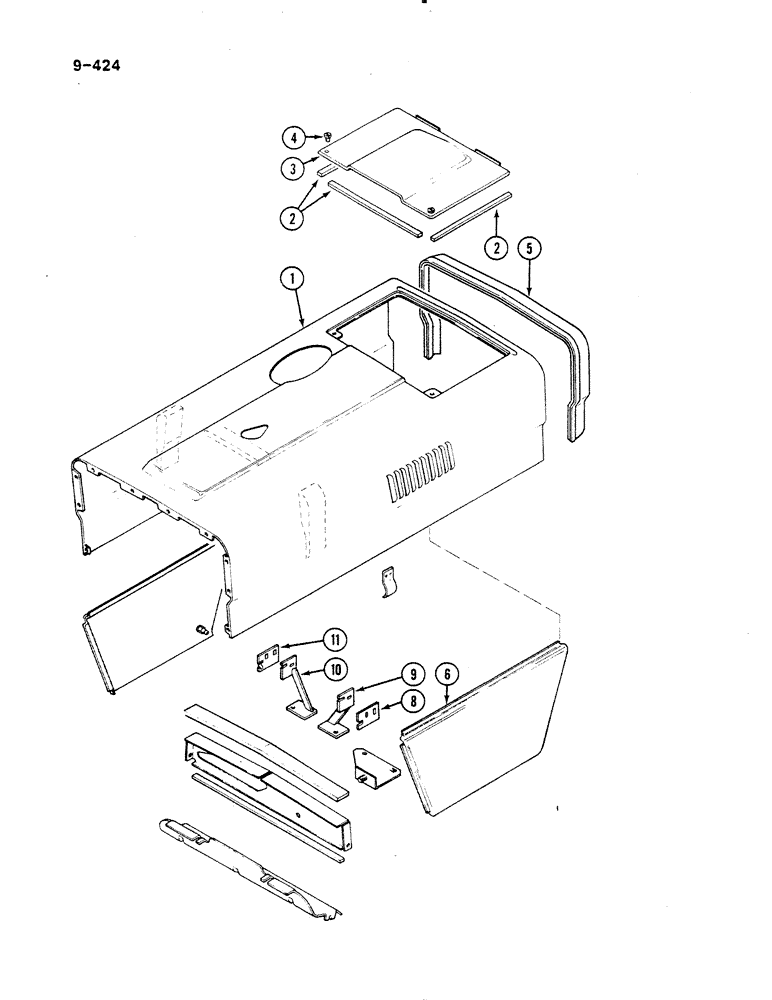

Запчасти Case IH 485 (9-424) - HOOD AND PANELS (09) - CHASSIS/ATTACHMENTS

1

94192C91

HOOD ASSY.

HOOD ASSEMBLY, tractors with verticle exhaust

1шт.

1

94216C92

HOOD ASSY.

HOOD ASSEMBLY, tractors with underslung exhaust

1шт.

1

99621C91

HOOD ASSY.

HOOD ASSEMBLY, left, MFD tractors and tractors with verticle exhaust, Start Serial: 18001

1шт.

1

99623C91

HOOD ASSY.

HOOD ASSEMBLY, MFD tractors and tractors with underslung exhaust, Start Serial: 18001

1шт.

1

1333126C1

HOOD ASSY.

HOOD ASSEMBLY,Orchard version

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Replaces 102214 5/16"

2шт.

1502286C1

NUT

cage floating, 5/16 inch NC

2шт.

98778C1

BOLT

hex, 5/16 inch NC, painted black

4шт.

98775C1

WASHER

flat, 5/16 inch, painted black

4шт.

2

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, side 17 inch, cut from 1265282C1 or 73211C1

2шт.

NSS

NOT SOLD SEPARAT

SEAL rear hood cover, front 10.9 inch, cut from 1265282C1 or 73211C1

1шт.

1265282C1

STRIP

SEAL bulk length

1шт.

73211C1

GASKET

SEAL bulk length, Serial Range: optional-1265282C1

1шт.

3

1330795C1

COVER

rear hood, with decal 321-6714, Includes: Ref. 4 and washer

1шт.

321-6714

DECAL

battery jump start, warning, English

1шт.

4

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW knurled

2шт.

4

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW knurled , optional to 389872R1

2шт.

376787R1

WASHER

X type, 0.256 x 0.75 inch

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL hood sheet, 45.7 inch, cut from 1265280C1

1шт.

1265280C1

SEAL

rubber, bulk length, 4 foot roll

1шт.

6

94407C1

PANEL

side, left

1шт.

6

99444C1

PANEL

side, left, MFD tractors, Start Serial: 18001

1шт.

6

1333132C1

PANEL

side, left, A, Orchard version

1шт.

8

99644C1

PLATE

adjustable, left

1шт.

8

1333134C1

PLATE

adjustable, left, Orchard version

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch, grade 5

2шт.

231-4144

NUT,1/4"-20, GB

NUT hex lock, 1/4 inch NC, grade 5

2шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.

9

99628C1

SUPPORT

side panel, left

1шт.

10

99627C1

SUPPORT

side panel, right

1шт.

11

99642C1

PLATE

adjustable, right

1шт.

11

1333135C1

PLATE

adjustable, right, Orchard version

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT carriage, 1/4 NC x 1/2 inch, grade 5

2шт.

231-4144

NUT,1/4"-20, GB

NUT hex lock, 1/4 inch NC, grade 5

2шт.

120392

WASHER,1/4", SAE

plain, 0.281 x 0.625 x 0.051 inch

2шт.
