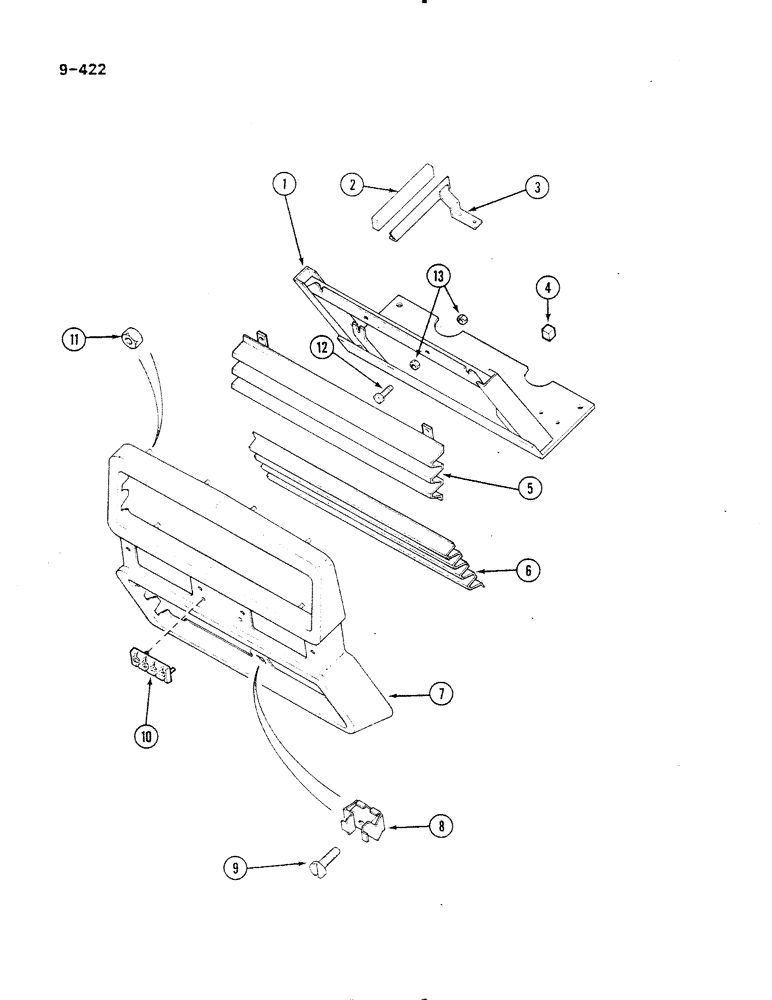

Запчасти Case IH 485 (9-422) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
94301C2
SUPPORT
grille and hood, not fitted to MFD tractors
1шт.
1
99440C2
SUPPORT
ASSEMBLY, grille and hood, MFD tractors only
1шт.
1
1333114C1
SUPPORT
grille and hood, Orchard version
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
hex, 3/8 NC x 1-1/4 inch, grade 5, ZND
2шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
hex, 3/8 NC x 1 inch, grade 5
2шт.
99854C1
SHIM
grille support
1шт.
2
NSS
NOT SOLD SEPARAT
SEAL side panel, foam, cut from 73228C1
2шт.
73228C1
GASKET
SEAL FOAM, 4 foot roll
1шт.
3
98877C1
SUPPORT
- side seal, short, right, not fitted to MFD tractors
1шт.
3
98878C1
SUPPORT
- side seal, short, left, not fitted to MFD tractors
1шт.
3
98873C1
SUPPORT
ASSEMBLY - side seal long, right, MFD tractors only
1шт.
3
98874C1
SUPPORT
ASSEMBLY - side seal long, left, MFD tractors only
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
4
NSS
NOT SOLD SEPARAT
SEAL sides, grille support, cut from 73220C1
2шт.
73220C1
FILLING STRIP
SEAL foam, bulk length, 4 foot roll
1шт.
5
94283C1
SCREEN
upper grille
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
6
94285C1
SCREEN
lower grille
1шт.
7
94229C1
GRILLE
front
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
8
99424C1
NUT
RETAINER nut
1шт.
9
160544
SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"
1шт.
10
A181523
EMBLEM CASE/IH
EMBLEM, Case, IH
1шт.
131431
NUT
self threading, 1/4 inch
2шт.
11
120375
NUT,Hex, 1/4" - 20, Gr 5
10шт.
180137
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
hex, 3/8 NC x 1 inch
2шт.
12
179850
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
hex, 3/8 NC x 2-3/4 inch, grade 5, Serial Range: -18001
2шт.
13
120377
NUT,3/8" - 16, Gr 5
, Serial Range: -18001
4шт.
Выбрано товаров: 35
