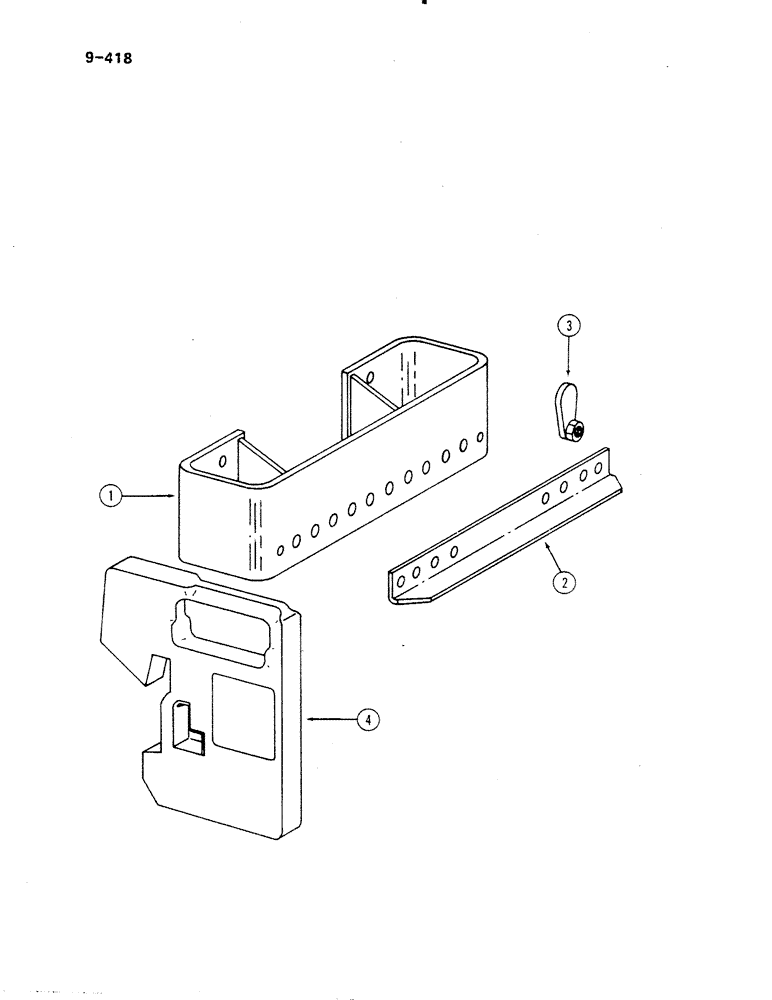

Запчасти Case IH 485 (9-418) - FRONT END WEIGHT BRACKETS AND WEIGHTS (09) - CHASSIS/ATTACHMENTS

1

99525C2

BRACKET

mounting, front weight

1шт.

1

3121273R1

BRACKET

mounting, front weight, Orchard models

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

2

536042R2

BAR

retaining, front weight

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

hex, 5/8 NC x 2-3/4 inch, grade 5, ZND

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

hex, 5/8 NC x 3-1/4 inch

2шт.

21793R1

WASHER

flat, 0.656 x 1.250 x 0.164 inch

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 inch NC, grade 5

2шт.

3

74202C1

CAM

weight locking

2шт.

4

NSS

NOT SOLD SEPARAT

WEIGHT, 100lb, use 2 to 4 as required, weights are only furnished as A machine attachment

4шт.
