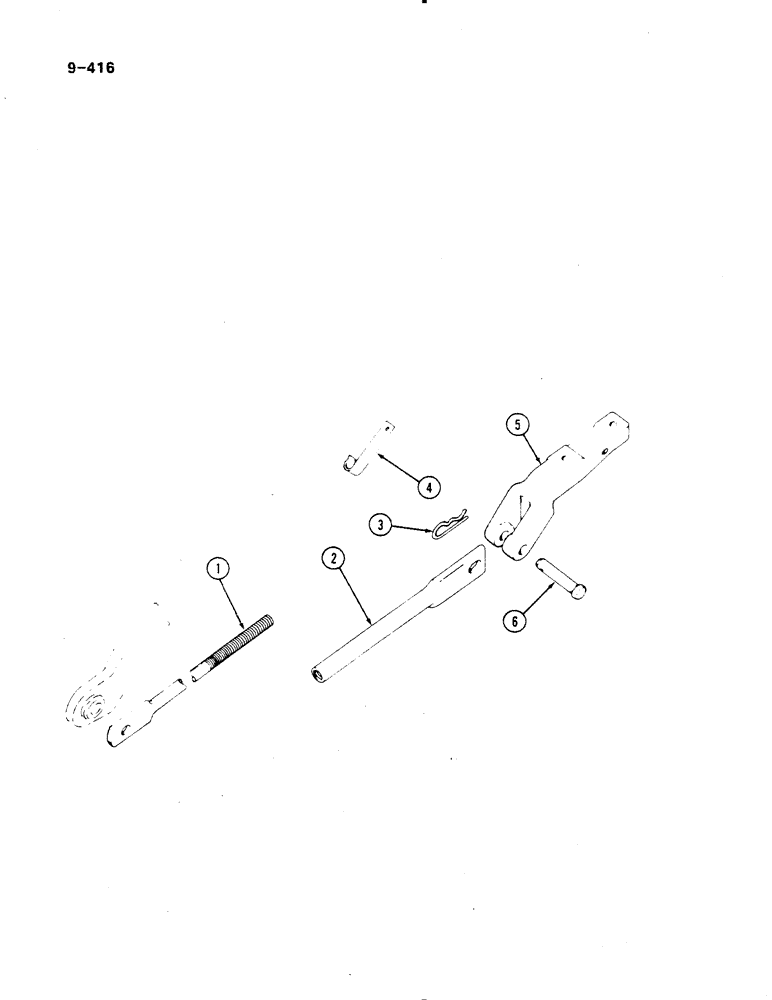

Запчасти Case IH 485 (9-416) - THREE POINT HITCH STABILIZER (09) - CHASSIS/ATTACHMENTS

1

378012R1

ROD

stabilizer end

2шт.

2

529344R1

TUBE

stabilizer end rod

2шт.

3

520175R1

CLIP

PIN quick attachable

2шт.

4

535888R1

CLIP

hplding, stabilizer rod end

2шт.

5

529342R3

BRACKET

stabilizer mounting

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch, grade 5, ZND

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex, 5/8 NC x 3 inch, grade 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

529346R1

PIN

stabilizer rod tube

2шт.

191249

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch, for mounting tail pipe rear support used on underslung exhaust, Serial Range: -18001

1шт.

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

- pipe, 3/8 x 1-3/32 inch, for mounting tail pipe rear support used on underslung exhaust, Serial Range: -18001

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , For mounting tail pipe rear support used on underslung exhaust 3/8", Serial Range: -18001

1шт.

120377

NUT,3/8" - 16, Gr 5

For mounting tail pipe rear support used on underslung exhaust 3/8"-16, G5, Serial Range: -18001

1шт.
