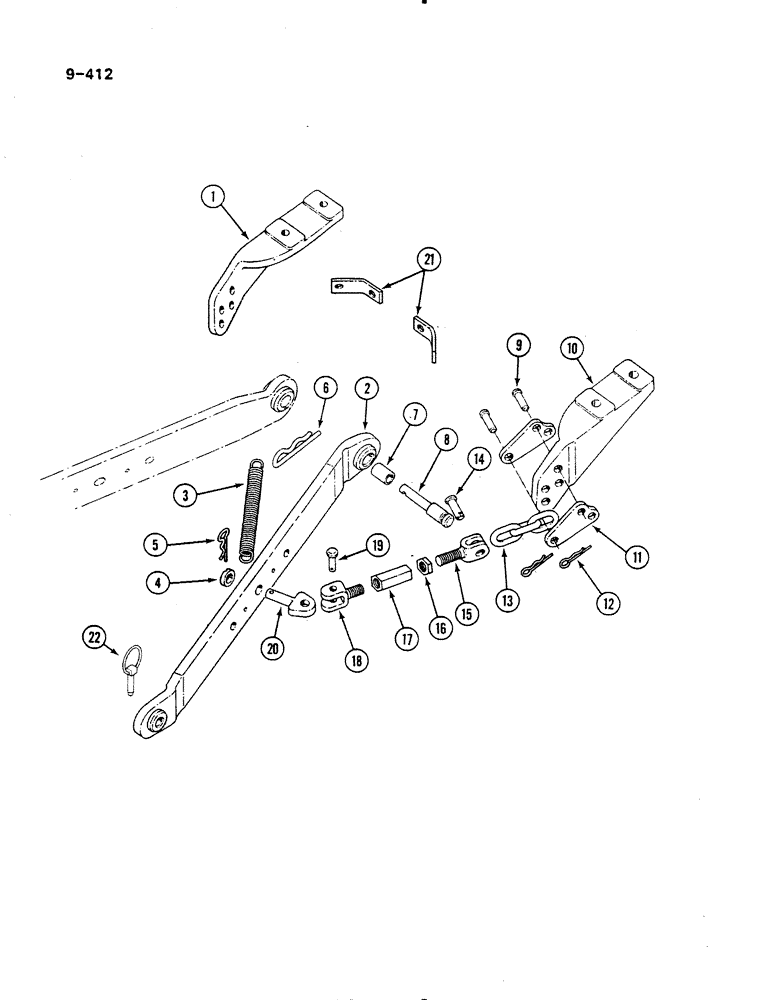

Запчасти Case IH 485 (9-412) - LOWER LINKS, THREE POINT HITCH, WITH OUTSIDE CHECK CHAINS (09) - CHASSIS/ATTACHMENTS

1

529874R1

SUPPORT

BRACKET check chain, left

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 NC x 2 inch, grade 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

1286791C91

LOWER LINK

LINK lower, 1-3/8 inch implement ball

2шт.

32-2024

COTTER PIN,5/16" x 1 1/2"

PIN, SPLIT (COTTER), 5/16" x 1 1/2"

4шт.

3

662632R1

SPRING

restraining

2шт.

4

529894R1

WASHER

adjustable eyebolt

2шт.

5

529895R1

CLIP

PIN spring

2шт.

6

538406R1

COTTER PIN

PIN quick attachable

2шт.

7

530826R1

BUSHING

lower link

2шт.

8

530825R1

PIN,31.75mm OD x 119.84mm L

lower link

2шт.

9

528112R2

PIN,15.77mm OD x 54.61mm L

clevis

4шт.

10

529875R1

SUPPORT

BRACKET check chain, right

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex, 5/8 NC x 2 inch, grade 5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

3129005R1

SUPPORT

STRAP adjusting, check chain

4шт.

12

720631R1

LINCH PIN

PIN cotter, quick attach

6шт.

13

3129007R1

CHAIN (AG)

CHAIN limiter

2шт.

14

403037R2

PIN

limiter chain

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

15

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

16

425-1514

JAM NUT,Jam, 7/8"-14, G5

hex jam, 7/8 inch NF, grade 5

2шт.

17

3113596R1

NUT

adjustment

2шт.

18

3118016R1

CLEVIS,7/8" - 14

limiter chain, LH thread

2шт.

19

528112R2

PIN,15.77mm OD x 54.61mm L

clevis

2шт.

20

3129014R1

EYEBOLT

BOLT eye, rear stabilizer

2шт.

21

3121228R1

BRACKET

sway chain

2шт.

271554

GREASE,Hex, 5/8" - 11 x 1", Gr 5

hex, 5/8 NC x 1 inch, grade 5

2шт.

22

533189R1

PIN

quick attachable

2шт.

1092610R3

DECAL

sway chains, English

1шт.

1092778R3

DECAL

sway chains, French

1шт.

1092779R3

DECAL

sway chains, Spanish

1шт.
