Запчасти Case IH 485 (9-408) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

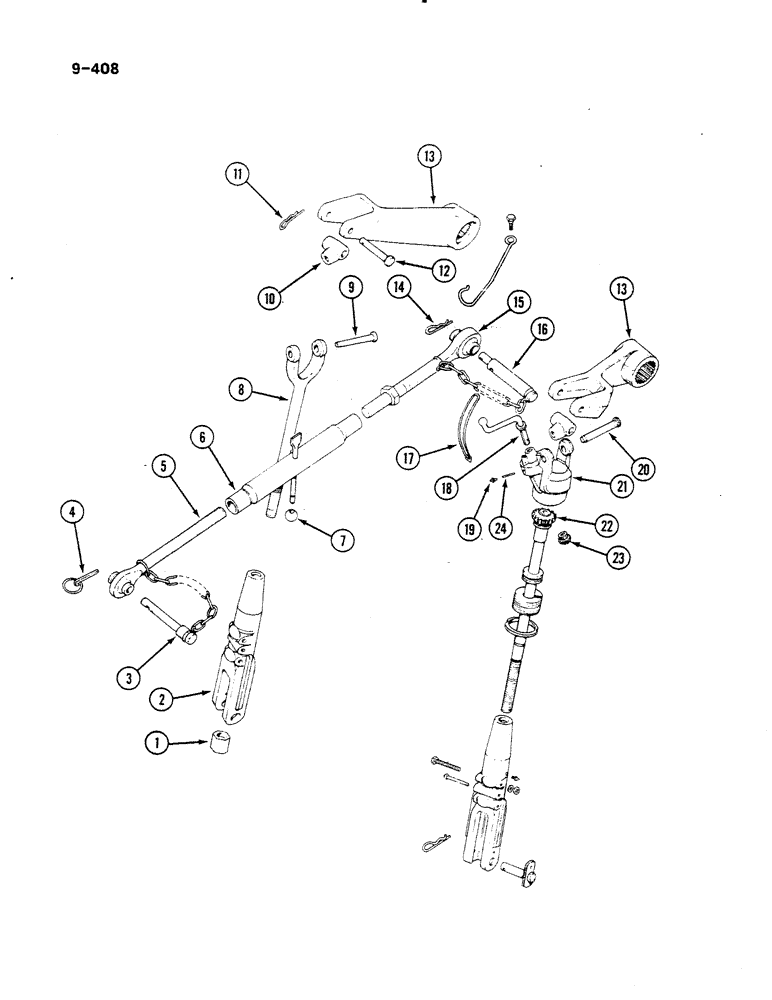

Схема запчастей Case IH 485 - (9-408) - THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS
14
20
2
11
12
10
13
7
23
21
6
8
4
24
13
5
9
16
22
3
1
15
18
17
19

Артикул

Название

Примечание

Количество

1

527937R1

NUT

lift link

2шт.

2

3121964R1

HOUSING

lift link yoke

2шт.

575814R1

WASHER

plain, 0.781 x 2 x 0.105 inch

4шт.

528085R91

UPPER LINK

LINK upper

1шт.

1328188C91

LINK

upper, Serial Range: optional-528085R91

1шт.

3

528081R1

PIN ASSY.

PIN upper link, Category I, part of upper link 528085R91

1шт.

1328192C1

PIN

- upper link, part of upper link 1328188R91

1шт.

1328193C1

CHAIN (AG)

CHAIN upper link, part of upper link 1328188R91

1шт.

4

533189R1

PIN

quick attachable, part of upper link 528085R91

1шт.

1328218C1

LINCH PIN,11mm OD

- link, part of upper link 1328188R91

1шт.

5

528000R1

SCREW

upper, right hand thread, part of upper link 528085R91

1шт.

1328190C1

SCREW,M27 x 3

SCREW upper, right hand thread, part of upper link 1328188R91

1шт.

905709R1

THIN NUT,Thin, M27 x 3

hex, part of upper link 1328188R91

1шт.

6

528002R1

TURNBUCKLE

part of upper link 528085R91

1шт.

1328191C1

TURNBUCKLE

part of upper link 1328188R91

1шт.

7

3048296R1

BUTTON

KNOB turnbuckle rod, part of upper link 528085R91

1шт.

8

527967R1

CLEVIS,7/8" - 9

YOKE lift link, left

1шт.

9

3044309R1

PIN

rockshaft arm

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

539247R1

BRACKET, PIVOT

SWIVEL leveling screw

2шт.

11

720631R1

LINCH PIN

PIN cotter, quick attach, rockshaft arm

2шт.

12

3044309R1

PIN

rockshaft arm

2шт.

13

402634R2

ROCKER ARM

ARM rockshaft

2шт.

14

530049R1

CLIP, SPRING

PIN quick attachable

1шт.

15

527998R1

SCREW

upper, left hand thread, part of upper link 528085R91

1шт.

426899

NUT,Jam, 1"-8, G5

hex, lock, 1 inch, part of upper link 528085R91

1шт.

1328189C1

SCREW,M27 x 3, LH Threads

SCREW upper, left hand thread, part of upper link 1328188R91

1шт.

16

528084R1

HITCH PIN

PIN upper link, Category II, part of upper link 528085R91

1шт.

1328194C1

PIN

- upper link, part of upper link 1328188R91

1шт.

1328193C1

CHAIN (AG)

CHAIN upper link, part of upper link 1328188R91

1шт.

17

3072424R1

SPRING

handle, leveling screw

1шт.

18

527943R1

CRANK

HANDLE leveling screw

1шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

P/N 109461 was replaced by 219-1 which is now replaced by self-tapping fitting W45836. 3072422R2 will no longer be tapped for 1/8 npt threads.

1шт.

20

3069069R1

PIN

headed, 5/8 x 3-3/4 inch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21

3072422R2

HOUSING

leveling screw, no longer tapped for 1/8 NPT threads

1шт.

22

69991C91

SCREW

leveling

1шт.

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

bearing

1шт.

22

69984C91

SCREW

leveling, Serial Range: optional-69991C91

1шт.

23

3069063R1

GEAR

pinion

1шт.

24

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

Выбрано товаров: 42
