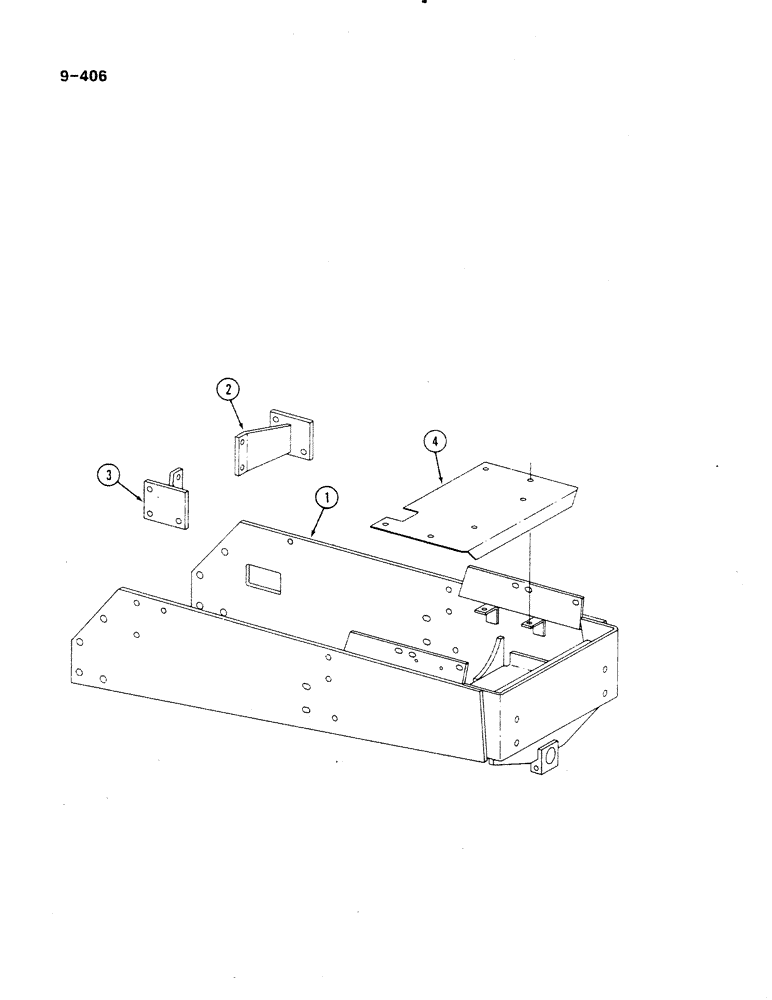

Запчасти Case IH 485 (9-406) - BOLSTER, FABRICATED (09) - CHASSIS/ATTACHMENTS

1

83172C1

FRAME

ASSEMBLY, Serial Range: -18001

1шт.

1

99707C1

FRAME

fabricated, Start Serial: 18001

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex, 3/4 NC x 2 inch, grade 5

8шт.

116124

LOCK WASHER,3/4"

3/4"

8шт.

2

70131C1

SUPPORT

left, engine front

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

25528R1

NUT,5/8"-11, G8

hex, 5/8 inch NC, grade 8

3шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

hardened flat, 0.656 x 1.312 x 0.095 inch

8шт.

3

70132C1

SUPPORT

right, engine front

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

3шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

25528R1

NUT,5/8"-11, G8

hex, 5/8 inch NC, grade 8

3шт.

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

hardened flat, 0.656 x 1.312 x 0.095 inch

8шт.

4

83176C1

SHEET

air seal, Serial Range: -18001

1шт.

4

99708C1

SHEET

air seal, Start Serial: 18001

1шт.
