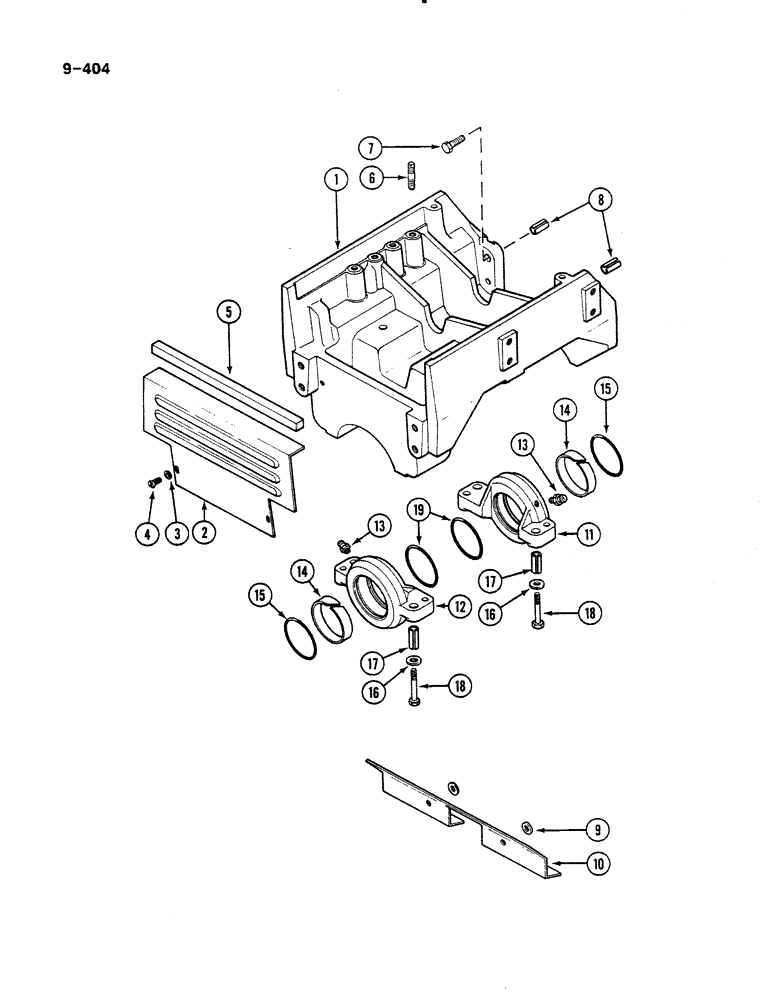

Запчасти Case IH 485 (9-404) - FRONT BOLSTER, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

94180C1

AXLE SUPPORT

BOLSTER cast, front

1шт.

2

94366C1

COVER

bolster, front

1шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3118624R1

SCREW

- hex washer head, 5/16 inch NC

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL front cover, 20.5 inch, cut from 7322C1

1шт.

73212C1

GASKET

SEAL foam, bulk length, 4 foot roll

1шт.

6

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

8шт.

8

99499C1

PIN

spring

2шт.

9

82744C1

WASHER

hardened

2шт.

10

99513C1

BAFFLE

bolster, air

1шт.

11

82014C1

HOLDER

BRACKET axle, rear

1шт.

12

82015C1

HOUSING

BRACKET axle, front

1шт.

13

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

14

82011C1

BUSHING

2шт.

15

82091C1

O-RING,5mm Thk x 120mm ID, 88 Duro

2шт.

16

3141764R1

WASHER

hardened, 17.5 x 32 x 6 mm

4шт.

17

905679R1

LOCK PIN,M21 x 36, Slotted

PIN slotted spring, 21 x 36 mm

4шт.

18

905636R1

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

8шт.

19

90219C1

O-RING,5mm Thk x 120mm ID, 88 Duro

0-RING special

2шт.
