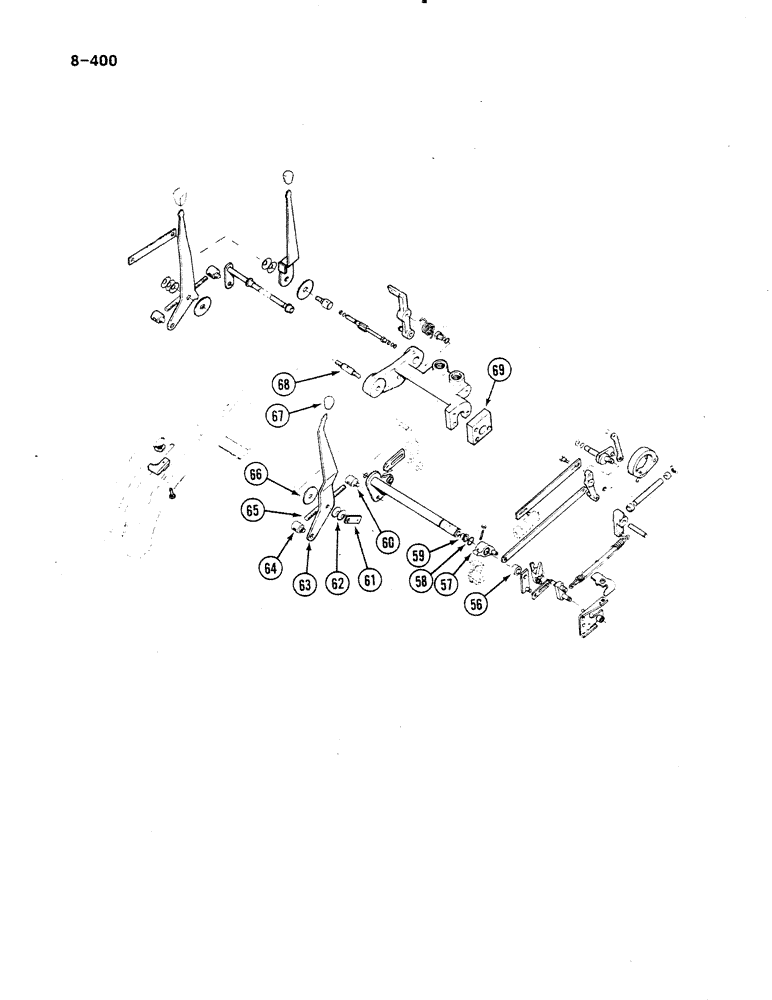

Запчасти Case IH 485 (8-400) - DRAFT CONTROL LINKAGE (CONTD) (08) - HYDRAULICS

56

527927R1

SPACER

load control shaft

1шт.

57

400017R1

LEVER ASSY.

LEVER actuating, slow motion

1шт.

303004R1

SNAP RING,#78, Ext

1шт.

58

574069R1

O-RING,0.750" ID x .062"

3/4 x 7/8 inch, class 5

1шт.

59

374940R1

NYLON BEARING

BEARING control lever shaft

1шт.

60

400087R1

PIN

connecting, hitch link rear

1шт.

61

537600R1

PLATE

inner retaining

1шт.

62

536847R1

BELLEVILLE WASHER

WASHER Belleville

2шт.

63

94164C1

LEVER ASSY.

LEVER adjusting, flow control

1шт.

64

400086R1

PIN

connecting, hitch link front

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

65

400085R1

STUD

connecting rod, hitch link

1шт.

204502R1

SNAP RING,#43, Ext

2шт.

66

380421R1

FRICTION WASHER

WASHER friction, sensitivity control

1шт.

67

400072R1

BUTTON

GRIP position and speed control

1шт.

68

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

- Hitch control lever pivot

1шт.

68

1333124C1

BOLT

hitch control lever pivot, Orchard version

1шт.

18253R1

LOCK NUT,3/8"-16, GB

NUT hex lock, 3/8 inch NC

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.

69

3129761R1

SPACER

1шт.
