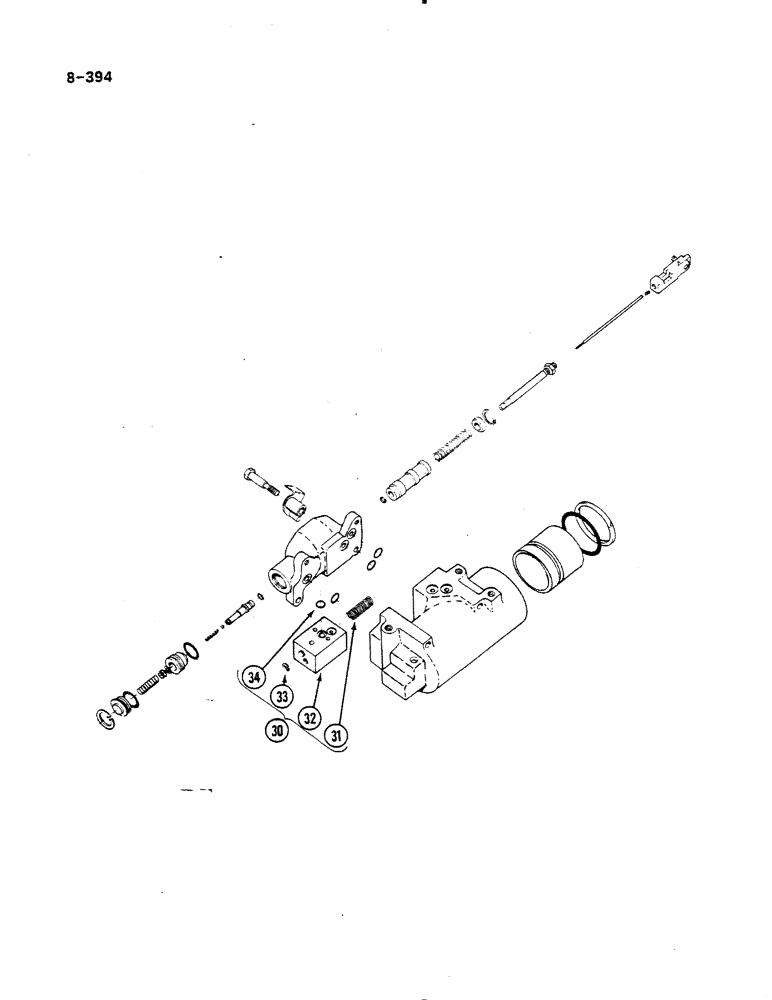

Запчасти Case IH 485 (8-394) - DRAFT CONTROL CYLINDER AND VALVE (CONTD) (08) - HYDRAULICS

30

60651C91

VALVE

action control, Includes Ref. 31 - 34

1шт.

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

31

547499R1

SPRING

spool return

1шт.

32

NSS

NOT SOLD SEPARAT

BODY action control valve

1шт.

33

392320R1

SNAP RING,#31, Ext, E-Type

Ring, Retaining, #31, Ext, E-Type

1шт.

34

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 inch, class 6

1шт.

404810R91

GASKET KIT

KIT service, O-ring, includes parts listed below

1шт.

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 inch, class 6

1шт.

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 inch, class 6

1шт.

375936R1

BACK-UP RING

WASHER piston, O-ring back up

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 inch, class 6

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 ID x 1/16 inch

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1 ID x 1/8 inch

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 ID x 1/16 inch

1шт.

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet valve, inner O-ring

2шт.

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 inch, class 6

2шт.
