Запчасти Case IH 485 (8-392) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS

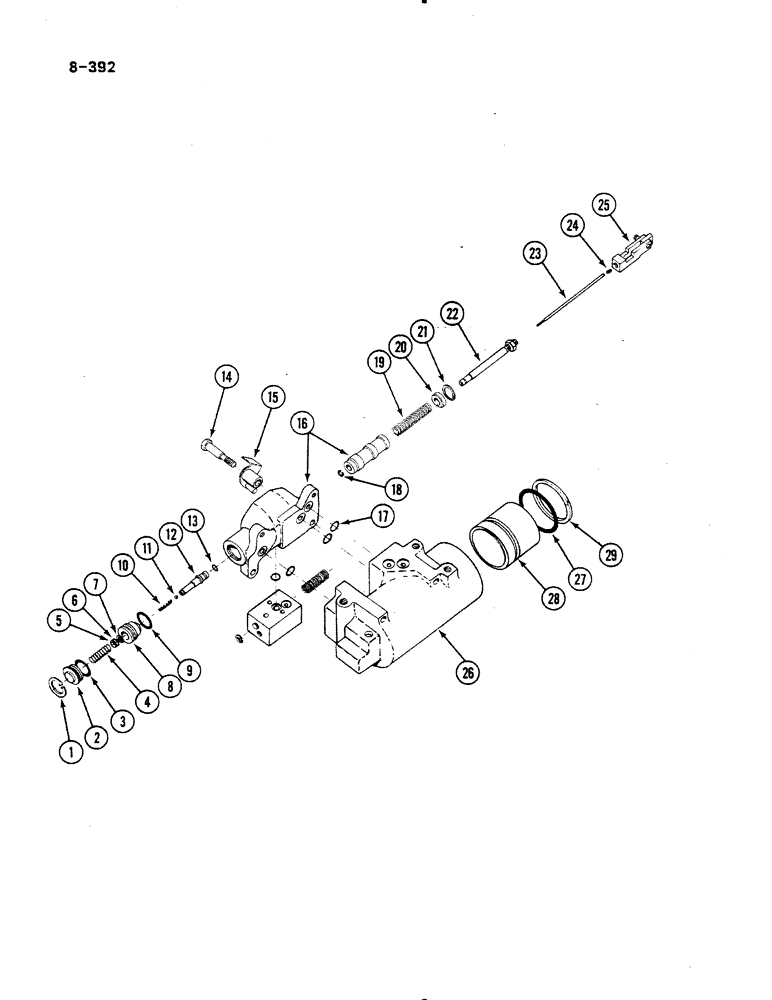

Схема запчастей Case IH 485 - (8-392) - DRAFT CONTROL CYLINDER AND VALVE (08) - HYDRAULICS
6
27
25
3
2
9
4
23
24
11
13
7
12
15
16
26
20
19
17
28
8
10
14
29
1
21
22
5
18

Артикул

Название

Примечание

Количество

399893R92

VALVE

draft control, Includes Ref. 1 - 13

1шт.

1

58102R1

SNAP RING,1.312", Int, #131

Drop valve 1.312", Int, #131

1шт.

2

376770R1

PLUG

drop poppet valve

1шт.

3

391733R1

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

1-1/8 x 1-1/4 inch, class 6

1шт.

4

376768R1

SPRING

drop poppet valve

1шт.

5

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet valve, inner O-ring

1шт.

6

406182R1

O-RING,1.78mm Thk x 9.25mm ID, 80 Duro

3/8 x 1/2 x 1/16 inch

1шт.

7

376767R1

BACK-UP RING,9.91mm ID x 12.5mm OD x 1.32mm Thk

drop poppet valve, inner O-ring

1шт.

8

376766R1

VALVE POPPET

VALVE drop poppet

1шт.

9

406184R1

O-RING,0.139" Thk x 0.984" ID, -214, 70 Duro

1 x 1-1/4 x 1/8 inch

1шт.

10

376765R1

SPRING

pilot valve

1шт.

11

17006R1

BALL

steel, 3/16 inch diameter

1шт.

12

392041R2

VALVE

adjusting, drop valve

1шт.

13

406183R1

O-RING,0.07" Thk x 0.301" ID, -11, 80 Duro

5/16 x 7/16 x 1/16 inch

1шт.

14

399892R1

BOLT,Shldr, Hex, 3/8" - 16 x 2.25"

- Retarding arm shoulder

1шт.

15

399889R1

ARM ASSY.

ARM draft retarding, Includes: plug and Ref. 16 and 18 thru 25

1шт.

16

399894R1

BODY

draft control valve, with spool

1шт.

444697

PLUG,Hex Soc, 3/8"-18

hex socket, 3/8 inch NPTF

1шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 inch, class 6

3шт.

18

376771R1

RING, SNAP

RING retaining, main valve tube

1шт.

19

395005R2

SPRING

main valve

1шт.

20

376759R1

RETAINER

main valve spring

1шт.

21

303322R1

SNAP RING,1.00", Int, #100

- Retaining, 1.111 inch 1.00", Int, #100

1шт.

22

376756R12

HYD CYL SLEEVE

TUBE actuatintg, main valve

1шт.

23

376763R1

ROD

actuating, drop valve

1шт.

24

378101R1

SET SCREW,Hex Soc, #8-36 x 1/4"

SCREW adjusting, drop valve

1шт.

25

527617R1

ARM ASSY.

ARM main valve

1шт.

26

399885R21

CYLINDER ASSY.

CYLINDER draft control, Includes: washer and Ref. 27 thru 29

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex, 3/8 NC x 4-1/2 inch, grade 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 inch, class 6

1шт.

28

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

PISTON draft control cylinder

1шт.

29

375936R1

BACK-UP RING

WASHER piston, O-ring back up

1шт.
