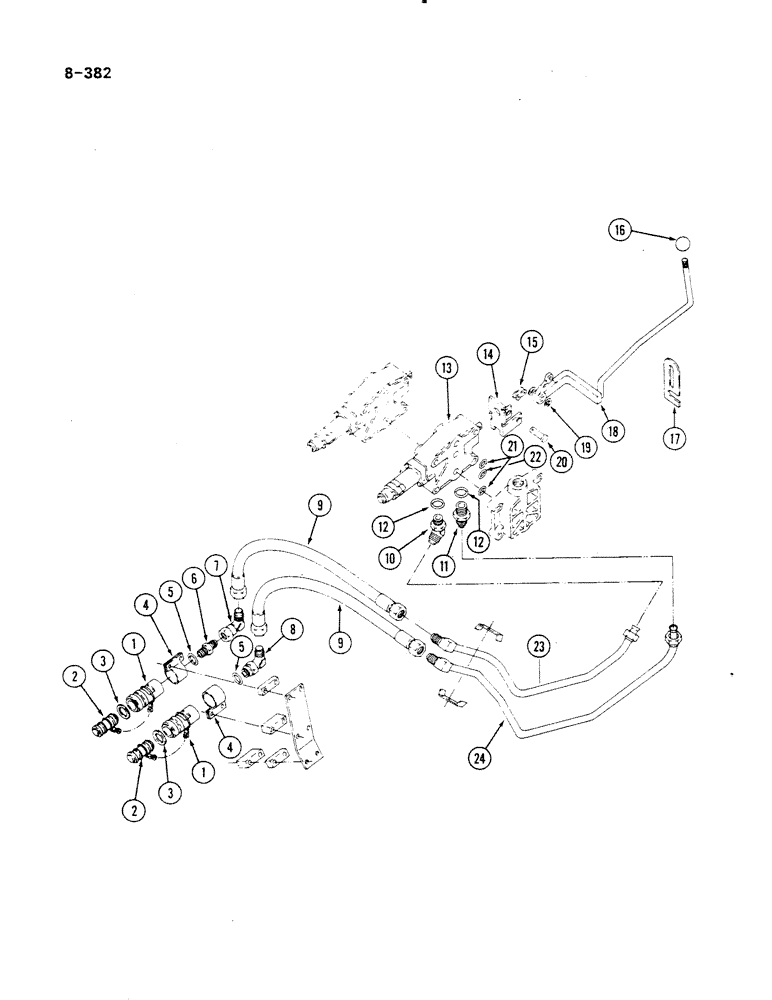

Запчасти Case IH 485 (8-382) - AUXILIARY VALVES, DOUBLE, 2ND BANK (08) - HYDRAULICS

1

1282338C91

COUPLING, QUICK, FEM

COUPLING self-sealing, female

2шт.

2

401757R11

PLUG

dust, breakaway coupling

2шт.

2

373220R1

PLUG

dust, breakaway coupling, Serial Range: optional-401757R11

2шт.

3

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

breakaway coupling, dust plug

2шт.

4

3114106R1

CLAMP

coupling

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

7

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

swivel, 90 degree, 5/8 inch OD tube

1шт.

8

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

adjustable, 90 degree, 5/8 inch OD tube

1шт.

9

3129556R1

HOSE

rear outlet

2шт.

10

9411106

ELBOW

adjustable, 45 degree, 5/8 inch OD tube

1шт.

11

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch od

2шт.

13

62464C94

VALVE

control, open center

1шт.

450517

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

hex, 3/8 NC x 4-3/4 inch, class 5

4шт.

14

114556C1

BRACKET

HANDLE bracket, control valve

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

1310D

LINK

connecting, No. 50

1шт.

16

3123087R1

BUTTON

KNOB ball, Black

1шт.

17

3125862R1

PLATE

lockout, auxiliary valve lever

1шт.

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

1шт.

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

3129559R1

LEVER

complete, auxiliary valve

1шт.

19

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

20

46883H

CLEVIS PIN,3/8" x 1 9/16"

PIN clevis, 3/8 x 1-9/16 inch

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 inch, class 6

2шт.

22

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 inch, class 6

1шт.

23

3129555R1

TUBE

rear outlet, lower

1шт.

24

3129554R1

HYD TUBE

TUBE rear outlet, raise

1шт.
