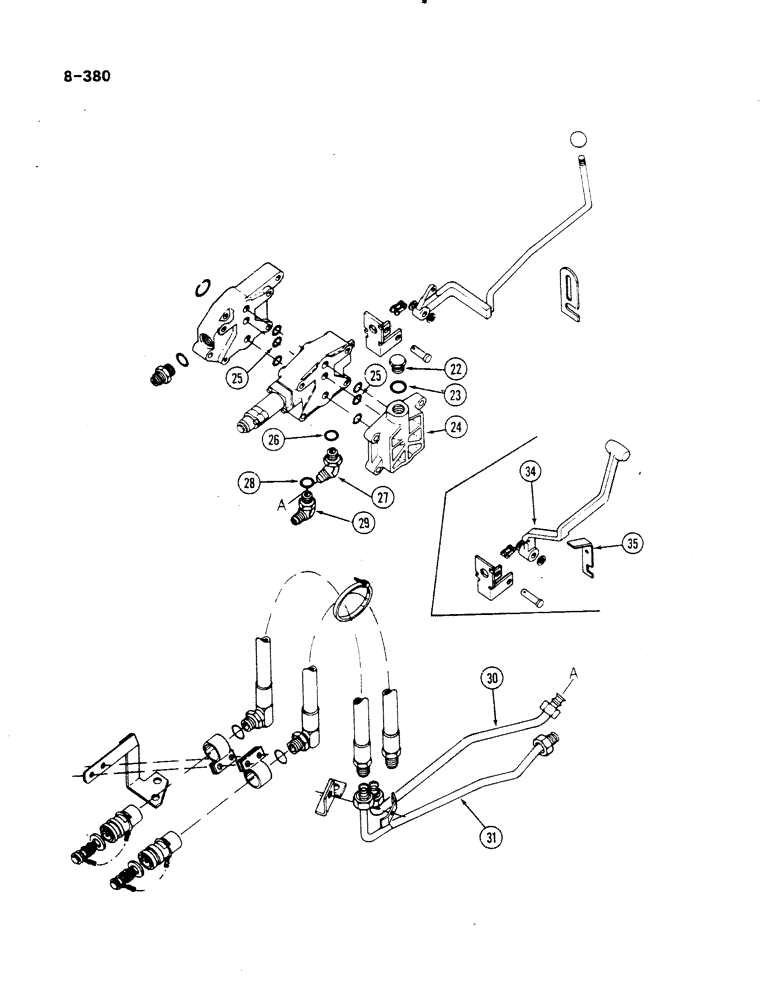

Запчасти Case IH 485 (8-380) - AUXILIARY VALVES, SINGLE FOR TRAC W/HYD DRAFT CONTROL, W/O INTERNAL PUMP ADAPTING ATTACHMENT(CONTD) (08) - HYDRAULICS

22

9410360

PLUG

O-ring boss, 5/8 inch NF

1шт.

23

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

24

123104C1

COVER

control valve, open center

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

25

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 inch, class 6

2шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

27

9411106

ELBOW

adjustable, 45 degree, 5/8 inch OD tube

1шт.

28

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

29

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

adjustable, 90 degree, 5/8 inch OD tube

1шт.

30

114560C1

TUBE

rear outlet, lower

1шт.

31

114559C1

TUBE

rear outlet, raise

1шт.

32

535301R1

CLAMP

rear outlet tube

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

33

535300R1

BRACKET

rear outlet tubes

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

hex, 1/2 NC x 2 inch, grade 5

1шт.

34

114564C1

HANDLE

valve control

1шт.

35

114557C1

BAR

handle, lock out

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch, grade 5, ZND

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER flat, 0.344 x 0.688 x 0.051 inch

1шт.

9410360

PLUG

O-ring boss, 5/8 inch NF

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.
