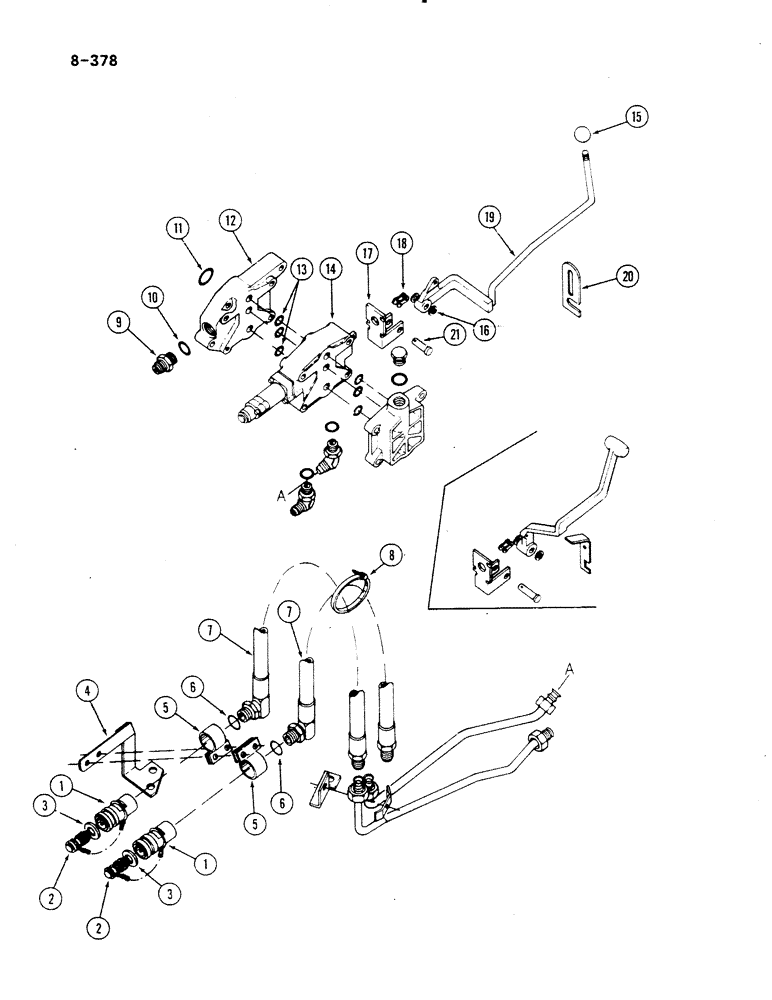

Запчасти Case IH 485 (8-378) - AUXILIARY VALVES, SINGLE FOR TRACTORS WITH HYD DRAFT CONTROL, W/O INTERNAL PUMP ADAPTING ATTACHMENT (08) - HYDRAULICS

1

1282338C91

COUPLING, QUICK, FEM

COUPLING self-sealing, female

2шт.

2

373220R1

PLUG

dust, breakaway coupling

1шт.

2

401757R11

PLUG

dust, breakaway coupling, Serial Range: optional-373220R1

2шт.

3

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

breakaway coupling dust plug

2шт.

4

535298R1

SUPPORT

BRACKET mounting, rear manifold

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, grade 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex, 1/2 NC x 2-1/4 inch, grade 5

2шт.

5

3114106R1

CLAMP

coupling

2шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch outside diameter

2шт.

7

535302R1

HOSE

rear outlet

2шт.

8

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

1шт.

9

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

11

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 3/16 inch, class 5

1шт.

12

123105C1

BLOCK

transfer, control valve

1шт.

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW, 12 point flanged, 3/8 NC x 1-3/4 inch

3шт.

13

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 inch, class 6

4шт.

14

62464C94

VALVE

control, open center

1шт.

15

3123087R1

BUTTON

KNOB ball, black

1шт.

16

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

17

114556C1

BRACKET

handle, control valve

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

1310D

LINK

connecting, No. 50

1шт.

19

3125863R1

LEVER

auxiliary valve

1шт.

20

3125862R1

PLATE

lockout, auxiliary valve lever

1шт.

120394

WASHER,3/8", SAE

WASHER flat, 13/32 x 13/16 x 3/64 inch

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

1шт.

21

46883H

CLEVIS PIN,3/8" x 1 9/16"

PIN clevis, 3/8 x 1-9/16 inch

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
