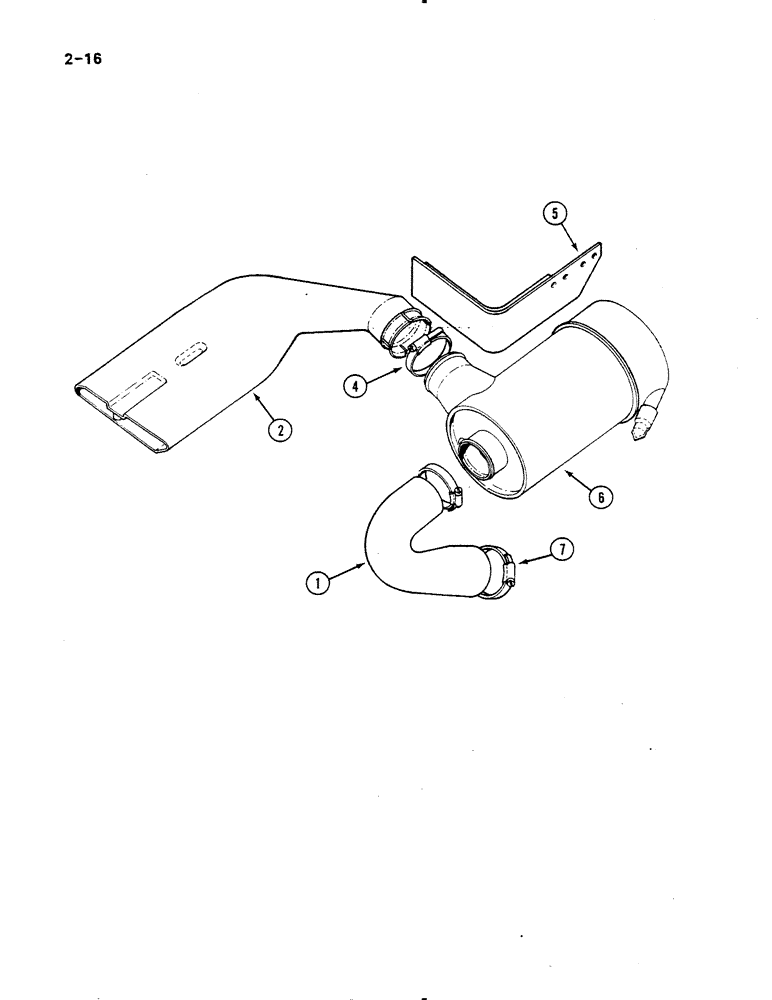

Запчасти Case IH 485 (2-016) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

1

1502062C1

INTAKE AIR HOSE,63.50 mm ID, 71.12 mm ID x 170.94 mm

HOSE air cleaner outlet

1шт.

2

529864R1

DUCT

air inlet

1шт.

4

21423R1

CLAMP

hose, 3-5/16 inch

1шт.

5

1502064C1

SUPPORT

BRACKET mounting, air cleaner

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

NSS

NOT SOLD SEPARAT

CLEANER ASSEMBLY air, see Figures 2-018, 2-020 or 2-022

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

539994R1

CLAMP

hose, No. 350S

2шт.
