(8-370) - AUXILIARY VALVES, COUPLINGS AND PIPES, BOSCH, 1ST AND 2ND BANK, P.I.N. 18001 AND AFTER (CONTD)

Запчасти Case IH 485 (8-370) - AUXILIARY VALVES, COUPLINGS AND PIPES, BOSCH, 1ST AND 2ND BANK, P.I.N. 18001 AND AFTER (CONTD) (08) - HYDRAULICS

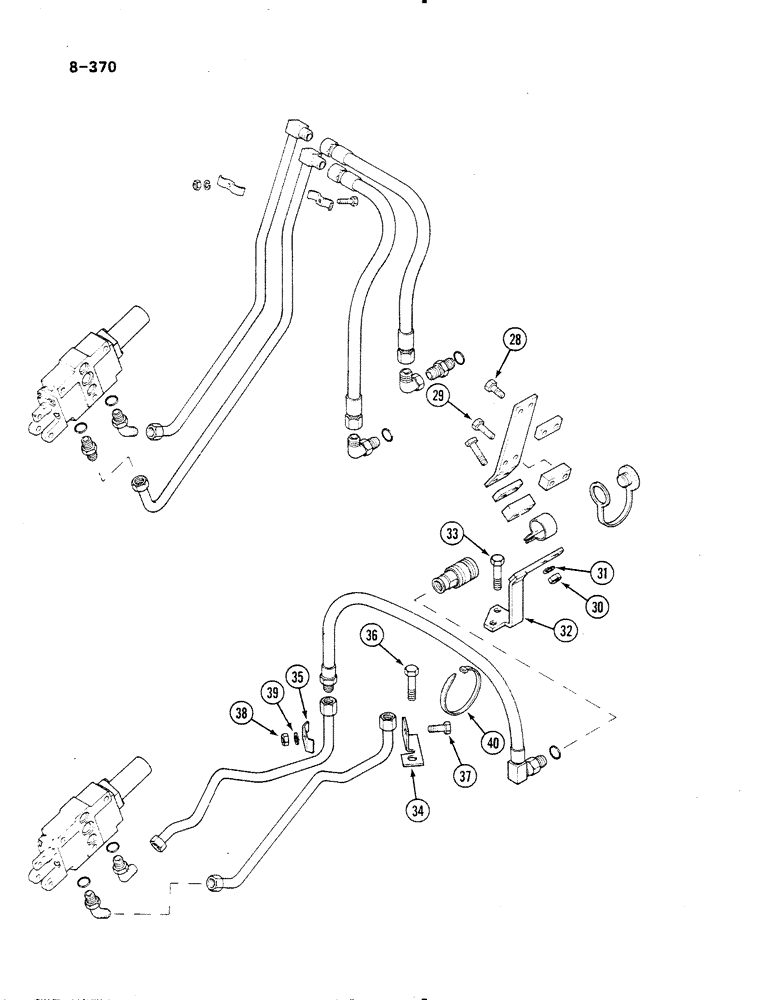

Схема запчастей Case IH 485 - (8-370) - AUXILIARY VALVES, COUPLINGS AND PIPES, BOSCH, 1ST AND 2ND BANK, P.I.N. 18001 AND AFTER (CONTD) (08) - HYDRAULICS
32
39
34
28
33
31
36
35
30
40
37
29
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

28

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

2шт.

29

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

hex, 5/16 NC x 1-3/4 inch, grade 5

2шт.

30

120376

NUT,5/16"-18, G5

1шт.

31

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

535298R1

SUPPORT

BRACKET mounting, rear manifold

1шт.

33

179890

LATCH

hex, 1/2 NC x 2-1/4 inch, grade 5

2шт.

35

535300R1

BRACKET

rear, outlet tubes

1шт.

36

535301R1

CLAMP

rear, outlet tube

1шт.

37

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

hex, 1/2 NC x 2 inch, grade 5

1шт.

39

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

40

120376

NUT,5/16"-18, G5

1шт.

41

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

42

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

1шт.
