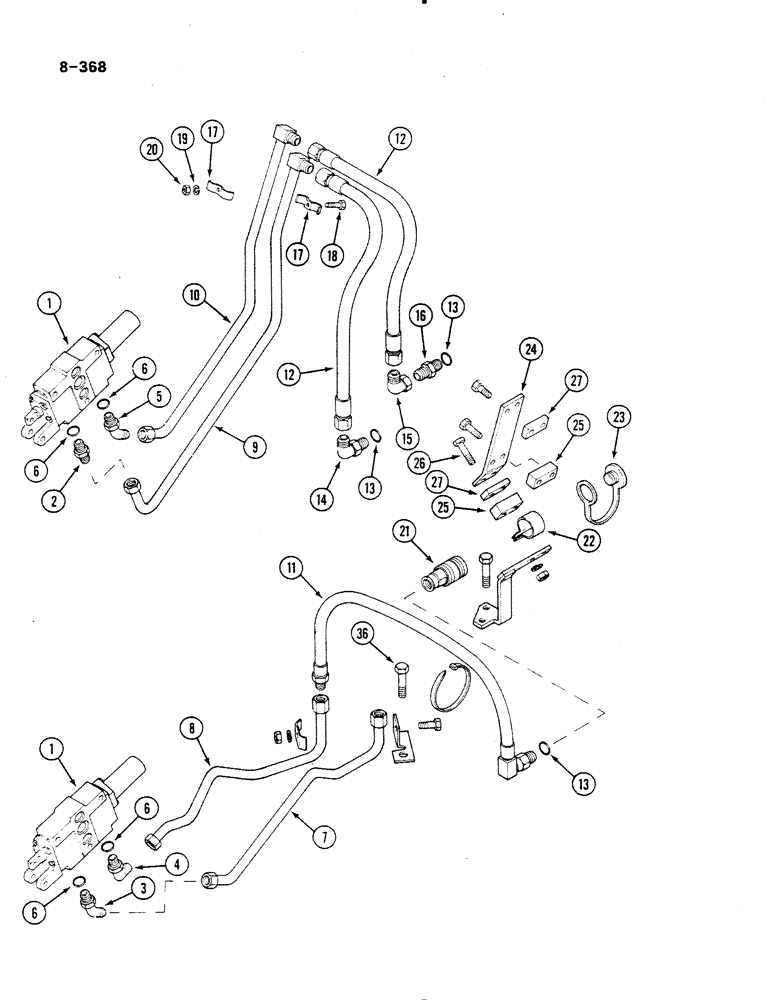

Запчасти Case IH 485 (8-368) - AUXILIARY VALVES, COUPLINGS AND PIPES, BOSCH, 1ST AND 2ND BANK, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

double acting, without check valve

1шт.

1

1287384C91

VALVE

double acting, with check valve

1шт.

2

86165C1

FITTING

UNION straight, 5/8 inch OD tube x M22, use with 2nd bank valve

1шт.

3

93636C1

ELBOW

45 degree, 5/8 inch OD tube x M22, use with 1st bank valve

1шт.

4

86703C1

ELBOW

90 degree, 5/8 inch OD tube x M22, use with 1st bank valve

1шт.

5

93636C1

ELBOW

45 degree, 5/8 inch OD tube x M22, use with 2nd bank valve

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

7

99649C1

TUBE ASSY.

TUBE lower ,1st bank front outlet

1шт.

8

99648C1

TUBE ASSY.

TUBE raise, 1st bank rear outlet

1шт.

9

99651C1

TUBE ASSY.

TUBE raise, 2nd bank front outlet

1шт.

10

99650C1

TUBE ASSY.

TUBE lower, 2nd bank rear outlet

1шт.

11

535302R1

HOSE

rear outlet

2шт.

12

3129556R1

HOSE

rear outlet

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

2шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

adjustable, 90 degree, 5/8 inch OD tube, use with 2nd bank valve

1шт.

15

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

swivel, 90 degree, 5/8 inch OD tube, use with 2nd bank valve

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - short, 5/8 inch OD tube, use with 2nd bank valve

1шт.

17

535301R1

CLAMP

rear, outlet tube

2шт.

18

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

19

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

120376

NUT,5/16"-18, G5

1шт.

21

1282338C91

COUPLING, QUICK, FEM

COUPLING self-sealing, female

1шт.

22

3114106R1

CLAMP

coupling

1шт.

23

373220R1

PLUG

dust, breakaway coupling

1шт.

24

3129558R1

PLATE

coupling, use with 2nd bank valve

1шт.

25

3129557R1

SPACER

coupling, use with 2nd bank valve

2шт.

26

180091

SPRING

hex, 5/16 NC x 2-1/2 inch, grade 5, use with 2nd bank valve

2шт.

26

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

hex, 5/16 NC x 1 inch, grade 5, use with 1st bank valve only fitment

2шт.

27

1500503C1

SPACER

coupling, use with 2nd bank valve

2шт.
