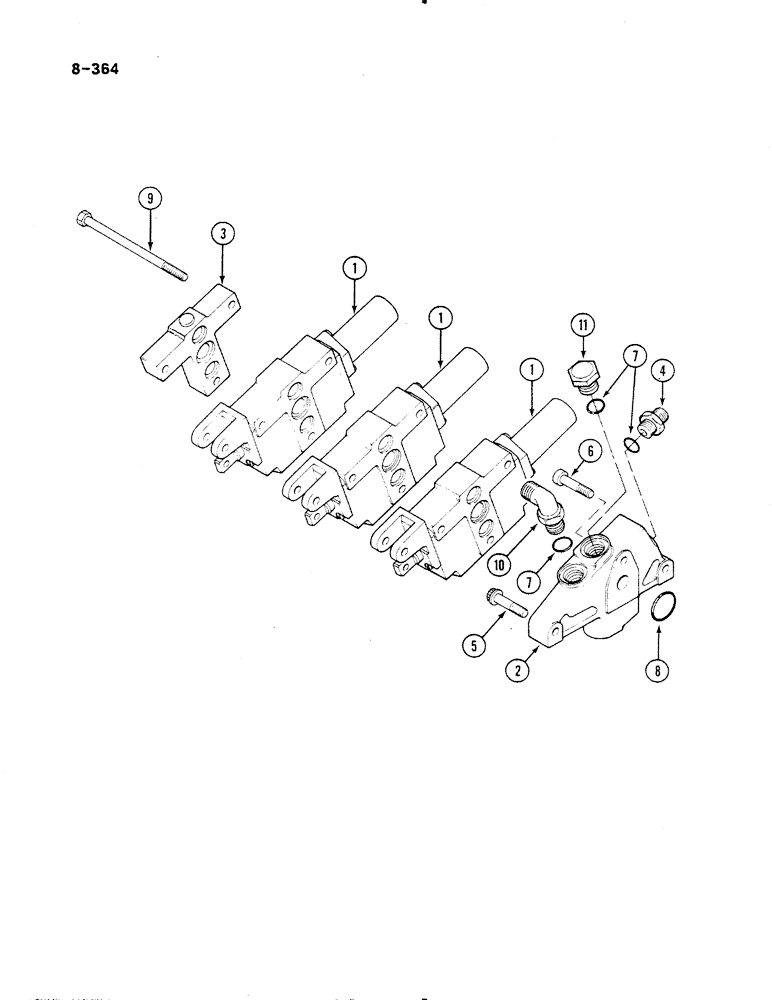

Запчасти Case IH 485 (8-364) - AUXILIARY VALVES, BOSCH, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

double acting, without check valve ,1st, 2nd or 3rd bank

1шт.

1

1287384C91

VALVE

double acting, with check valve, 1st, 2nd or 3rd bank

1шт.

2

94070C1

PLATE

BLOCK transfer, control valve

1шт.

This is a Bosch valve and Power Beyond is already built into this control valve transfer block

1шт.

3

89464C91

COVER

valve end

1шт.

4

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

1шт.

5

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW, 12 point flanged, 3/8 NC x 1-3/4 inch

2шт.

6

NLS

NO LONGER SERVICED

cap, hex socket, 3/8 NC x 1-3/4 inch

1шт.

7

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

3шт.

8

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

1-1/4 x 3/16 inch, class 5

1шт.

9

31291R1

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

hex, M8 x 80 mm, class 8.8, use with 1 valve bank

3шт.

9

931628R1

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

hex, M8 x 120 mm, class 8.8, use with 2 valve bank

3шт.

9

31252R1

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

hex, M8 x 160 mm, class 8.8, use with 3 valve bank

3шт.

10

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

adjustable, 90 degree, 5/8 inch OD tube

1шт.

11

9410360

PLUG

O-ring boss, 5/8 inch NF

1шт.
