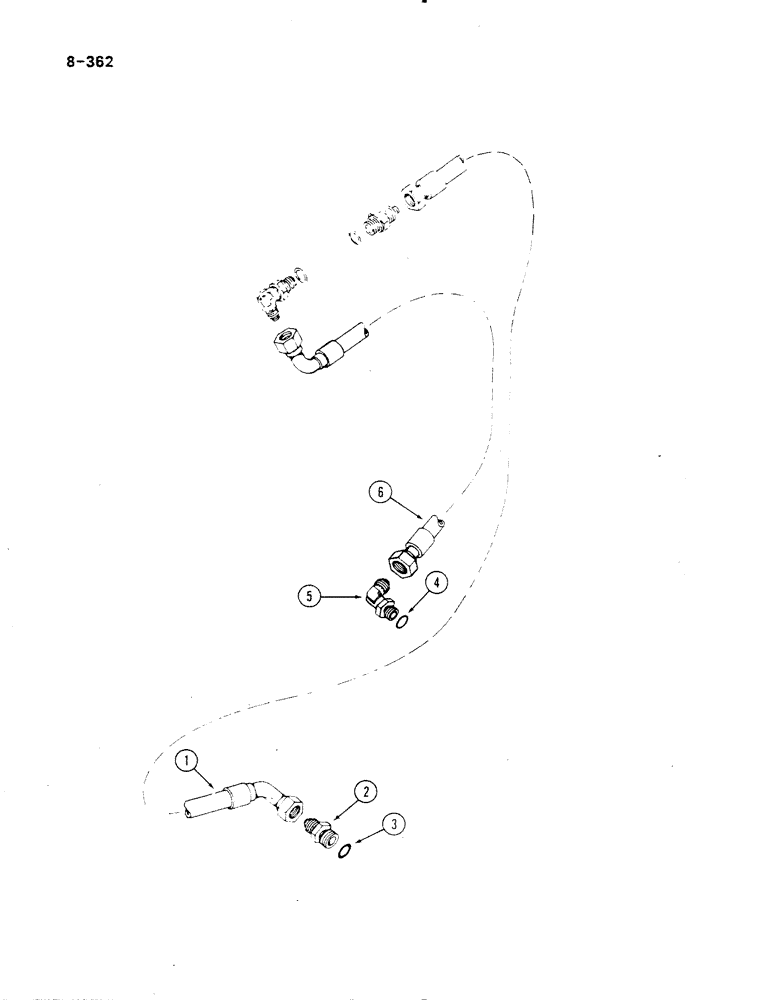

Запчасти Case IH 485 (8-362) - AUXILIARY POWER SOURCE (08) - HYDRAULICS

1

3123730R1

HOSE,0.75" ID x 75.00", SAE 100R4 CLASS 4

0.75" ID x 75.00", SAE 100R4, CLASS 4, Return

1шт.

2

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION short, 3/4 to 1 inch OD tube

1шт.

3

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 inch OD tube, class 6

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch OD

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

adjustable, 90 degree, 5/8 inch OD tube

1шт.

6

3123729R1

HOSE,0.50" ID x 75.00", SAE 100R3 CLASS 8

0.50" ID x 75.00", SAE 100R3, CLASS 8

1шт.

9410360

PLUG

O-ring boss, 5/8 inch NF, multiple control valve application

1шт.
