(8-356) - REGULATOR VALVE, 2 SPEED POWER SHIFT, P.I.N. 18001 AND AFTER

Запчасти Case IH 485 (8-356) - REGULATOR VALVE, 2 SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

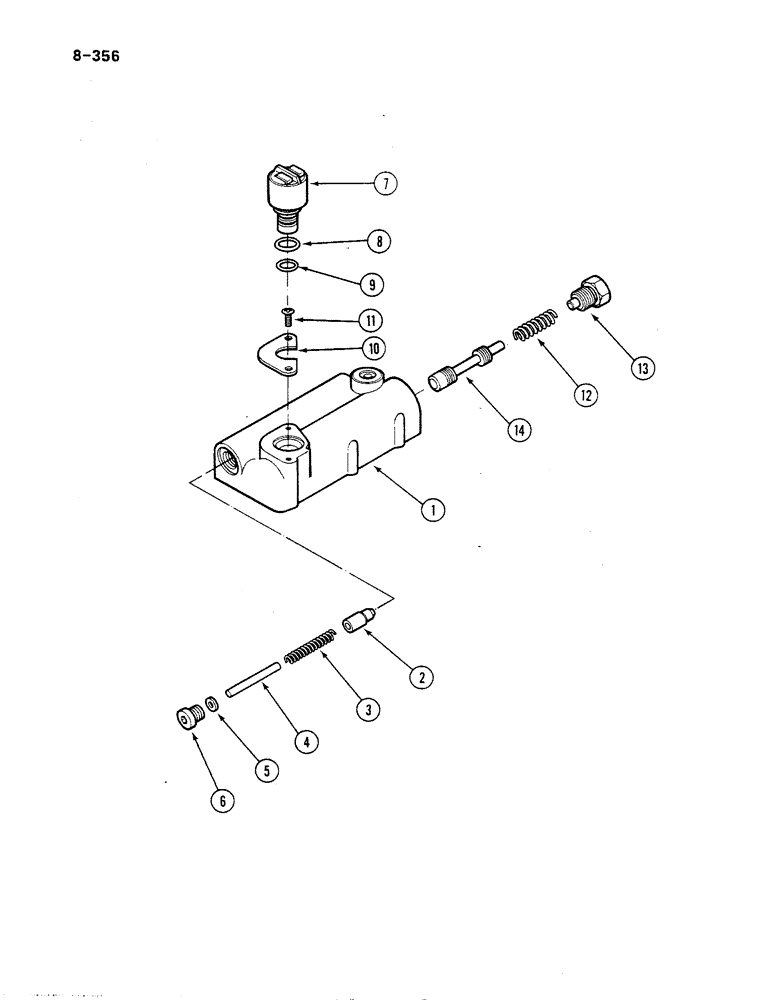

Схема запчастей Case IH 485 - (8-356) - REGULATOR VALVE, 2 SPEED POWER SHIFT, P.I.N. 18001 AND AFTER (08) - HYDRAULICS
3
4
8
14
5
7
2
1
6
10
12
9
13
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

83006C93

VALVE

pressure regulator, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY

1шт.

2

399882R1

POPPET

poppet, pressure regulator

1шт.

3

88426C1

SPRING

1шт.

4

399881R2

PIN

valve, pressure regulator

1шт.

5

1954071C1

WASHER

1шт.

6

1954070C1

PLUG

1шт.

7

1287432C92

VALVE

solenoid, Includes: Ref. 8 and 9

1шт.

8

31161R1

O-RING,Cl 6, 12.5MM ID x 1.8 Thk

12.5 mm ID

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

10

1289695C1

COLLAR

CLAMP solenoid valve

1шт.

11

30827R1

SCREW,Cross Pan Hd, M4 x 8

pan, cross recess, M4 x 8 mm, class 4.8

2шт.

12

1289693C3

SPRING

compression

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.
