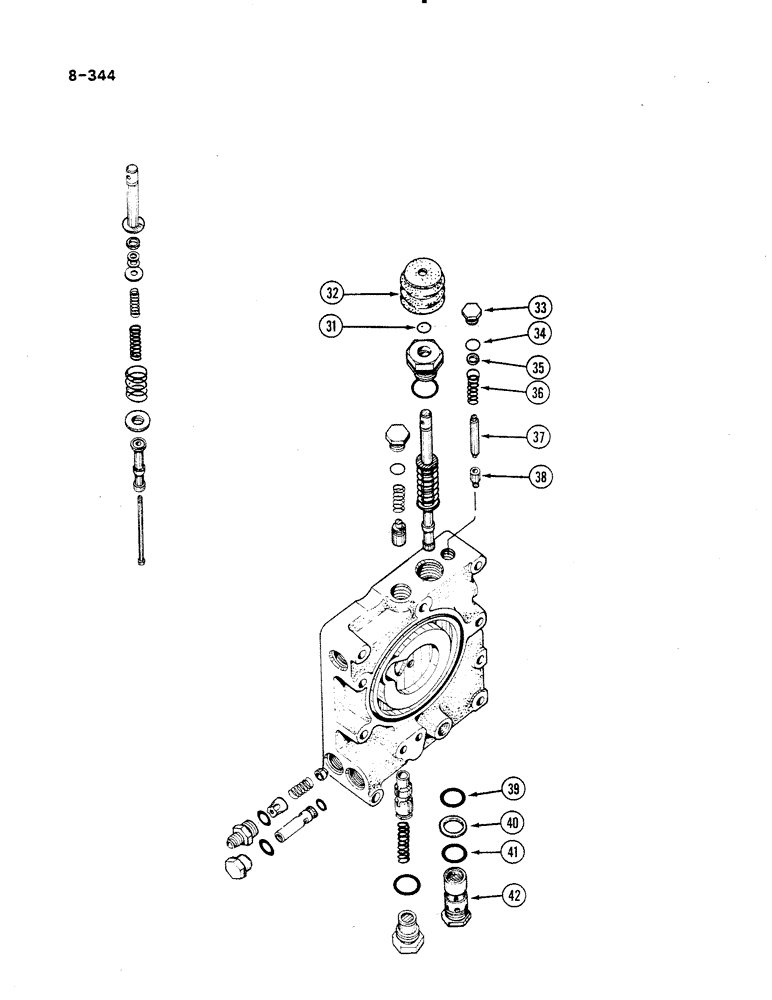

Запчасти Case IH 485 (8-344) - MULTIPLE CONTROL VALVE (CONTD) (08) - HYDRAULICS

31

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 inch, class 5

1шт.

32

530780R1

BOOT

dust, PTO control

1шт.

33

573983R1

PLUG

regulator valve

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

35

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

spring retainer

1шт.

36

549850R1

SPRING

valve, pressure regulator

1шт.

37

399881R2

PIN

valve, pressure regulator

1шт.

38

399882R1

POPPET

poppet, pressure regulator

1шт.

39

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 inch, class 6

1шт.

40

378985R2

BACK-UP RING

back up

1шт.

41

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 inch, class 5

1шт.

42

399858R92

VALVE

pilot relief, 2500 psi, see Figure 8-346

1шт.
