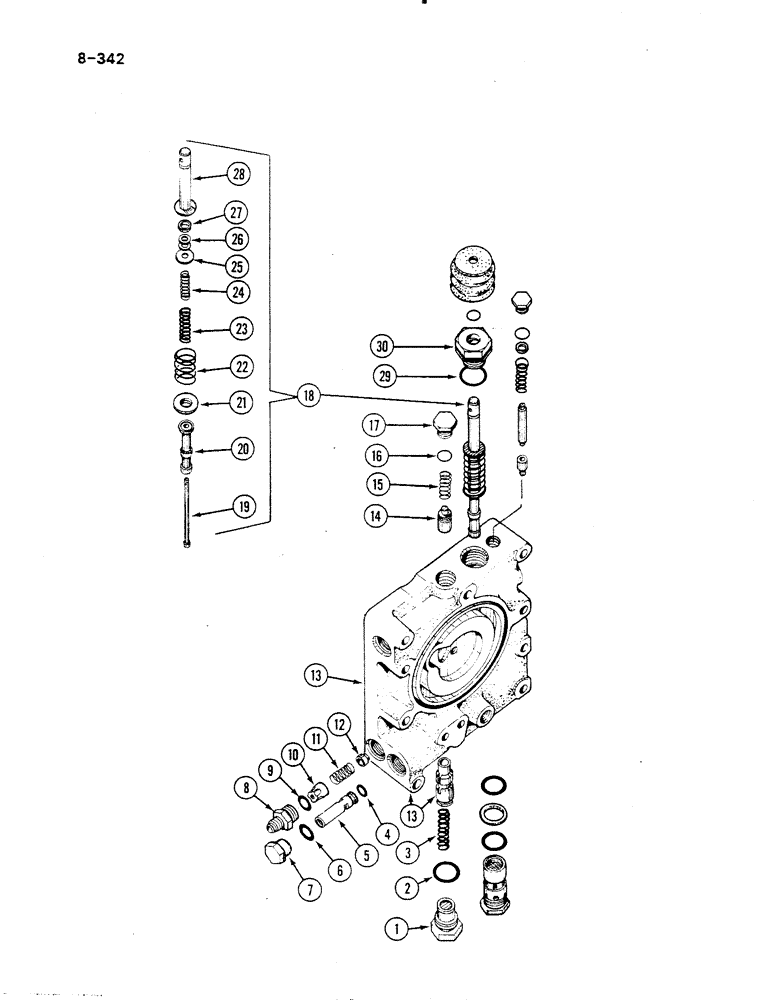

Запчасти Case IH 485 (8-342) - MULTIPLE CONTROL VALVE (08) - HYDRAULICS

57714C96

VALVE

multiple control, Serial Range: -18001

1шт.

94281C91

VALVE

multiple control, Start Serial: 18001

1шт.

1

405447R2

PLUG

flow divider

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 inch OD tube, class 6

1шт.

3

405448R1

SPRING

valve, flow divider

1шт.

4

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 inch, class 6, Serial Range: -18001

1шт.

5

55356C1

VALVE, CUSHION

VALVE safety, 1500 psi, Serial Range: -18001

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6, Serial Range: -18001

1шт.

7

536855R1

PLUG

O-ring boss, 3/4 inch NF, Serial Range: -18001

1шт.

8

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch, Serial Range: -18001

1шт.

8

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION short, 1/2 inch OD tube, Start Serial: 18001

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

10

399870R2

RETAINER

spring, check valve, Serial Range: -18001

1шт.

11

399869R1

SPRING

check valve, Serial Range: -18001

1шт.

12

382304R1

CHECK VALVE

VALVE check, Serial Range: -18001

1шт.

13

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY, multiple control valve, order assembly 94281C91 or 57714C96

1шт.

14

527482R1

VALVE,By-Pass

VALVE by pass

1шт.

15

1502544C1

SPRING

valve, by-pass

1шт.

16

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

17

529492R2

PLUG

cooler, bypass

1шт.

18

530775R93

VALVE

control, complete assembly, Includes Ref. 19 - 28 and pin

1шт.

19

405454R2

PIN

guide, control valve

1шт.

20

405452R2

VALVE

control

1шт.

21

405453R1

RETAINER

IPTO valve

1шт.

22

530776R1

SPRING

return, control valve

1шт.

23

381760R1

SPRING

control valve, light

1шт.

24

399878R2

SPRING

- control valve, heavy

1шт.

25

556980R1

WASHER

flat, 0.203 x 0.75 x 0.054 inch, Includes: Ref. 26

1шт.

26

369107R1

SNAP RING,#21, Ext

Ring, Snap, #21, Ext

1шт.

27

530778R1

RETAINER

COLLAR retaining

1шт.

28

530777R2

STEM

control valve

1шт.

405456R1

PIN

dowel, control valve

1шт.

29

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 inch OD tube, class 6

1шт.

30

530781R2

GUIDE

stem, control valve

1шт.
