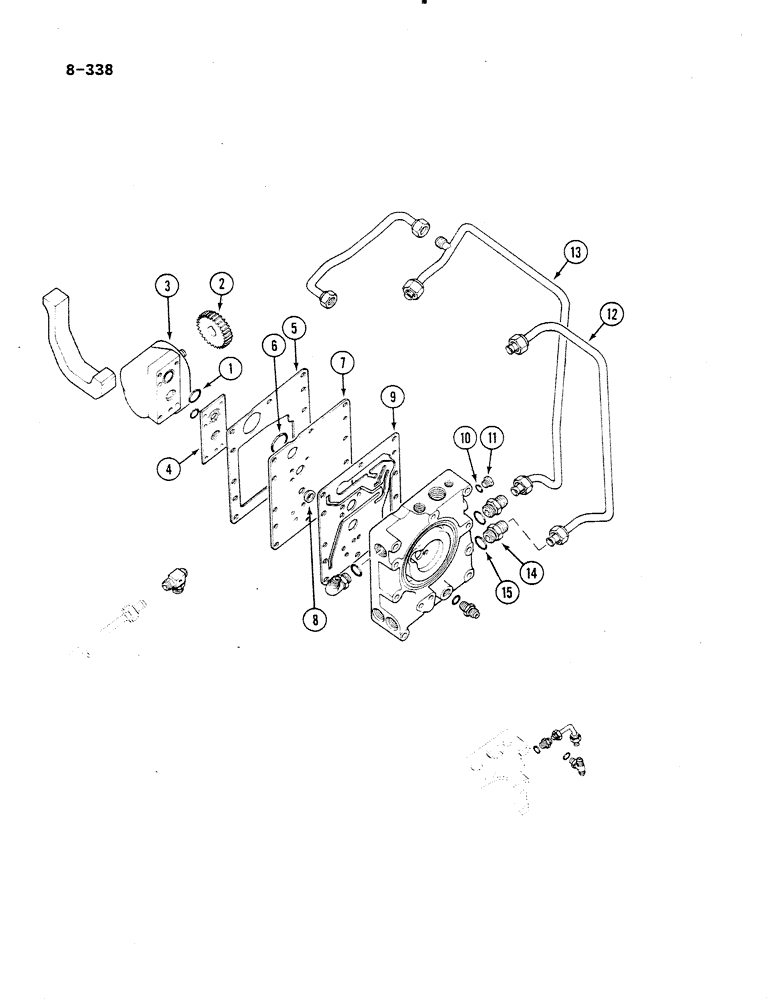

Запчасти Case IH 485 (8-338) - HYDRAULIC POWER SUPPLY AND MULTI CONTROL VALVE (08) - HYDRAULICS

1

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1-1/16 x 3/32 inch, class 5, pump suction port

1шт.

2

544908R1

GEAR

driven, 21 teeth

1шт.

2

406764R1

PINION

GEAR driven, 27 teeth, 12 gpm pump, Serial Range: -18001

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT hex lock, 1/2 inch NF

1шт.

2

59369C1

GEAR

driven, 23 teeth

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT hex lock, 1/2 inch NF

1шт.

2

94181C1

GEAR

driven, 20 teeth

1шт.

19258R1

LOCK NUT,1/2"-20, GB

NUT hex lock, 1/2 inch NF

1шт.

3

406763R92

HYDRAULIC PUMP

PUMP ASSEMBLY, hydraulic gear, 12 gpm, Serial Range: -18001

1шт.

3

84573150R

REMAN-HYD PUMP

485 CASE IH TRACTOR, PUMP ASSEMBLY, hydraulic gear, 12 gpm, Serial Range: -18001 (1/85-12/90), Reman for New PN 406763R92

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, grade 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

bolt, pump mounting

4шт.

3

93835C91

PUMP, HYDRAULIC

PUMP hydraulic gear, Sunstrand, includes key and kit listed below

1шт.

3

84573150R

REMAN-HYD PUMP

485 CASE IH TRACTOR, PUMP hydraulic gear, Sunstrand (1/85-12/90), Reman for New PN 93835C91

1шт.

3

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

1502030C1

SEAL KIT

KIT service, seals

1шт.

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

hex, 5/16 NC x 3-1/4 inch, grade 5

4шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

bolt, pump mounting

4шт.

4

544909R2

LARGE PLATE

PLATE mounting, pump, 15 and 16 gpm pumps

1шт.

4

59370C1

LARGE PLATE

PLATE mounting, pump

1шт.

5

401736R3

GASKET

valve, multiple control, HV

1шт.

6

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1/8 inch, class 5, nlet port

1шт.

7

405458R2

LARGE PLATE

PLATE multiple control valve

1шт.

8

387926R2

RING

rectangular

1шт.

9

65000C3

GASKET

multiple control, valve body

1шт.

10

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

11

9410356

PLUG

O-ring boss, 7/16 inch NF

1шт.

12

66764C1

PIPE

TUBE multiple control, valve by pass

1шт.

This is for industrial models, may need to order 66760C1 which has extra tee fitting

1шт.

13

66761C1

TUBE ASSY.

TUBE return draft control, Serial Range: -18001

1шт.

13

1956744C1

HYD TUBE

TUBE return, draft control, Start Serial: 18001

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION short, 5/8 inch OD tube

2шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 inch O.D.

2шт.
