(8-336) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE

Запчасти Case IH 485 (8-336) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (08) - HYDRAULICS

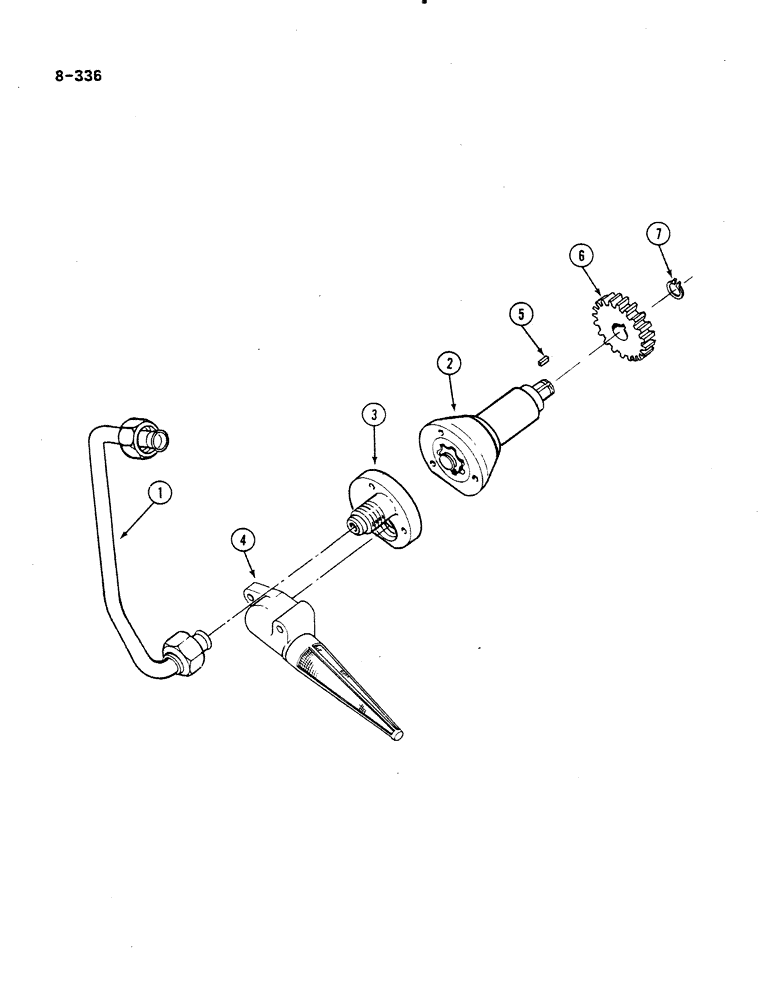

Схема запчастей Case IH 485 - (8-336) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (08) - HYDRAULICS
4
1
6
5
7
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

527423R1

PRESSURE PIPE

PIPE outlet, transfer pump

1шт.

2

3123726R91

PUMP, HYDRAULIC

PUMP ASSEMBLY, Includes Ref. 3 and 4

1шт.

3

3123727R1

PLATE

end

1шт.

4

1282191C1

STRAINER ELEMENT

STRAINER pump

1шт.

527424R1

SCREW

retaining, pump

2шт.

5

529100R1

BUCKET TOOTH KEY

KEY, transfer pump, driven gear

1шт.

6

528095R1

PINION

GEAR driven, transfer pump, 21 teeth

1шт.

7

3042123R1

RING, SNAP

RING retaining, driven gear

1шт.
