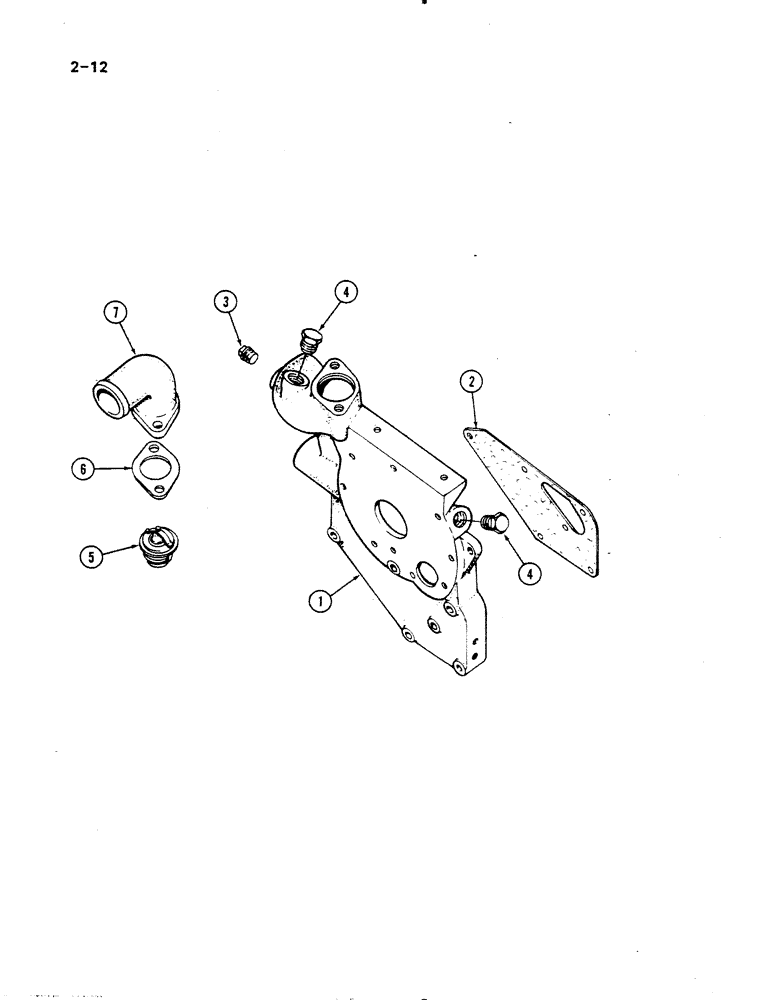

Запчасти Case IH 485 (2-012) - WATER PUMP CARRIER AND THERMOSTAT (02) - ENGINE

1

3136678R2

COVER

CARRIER water pump

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, grade 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

Replaces 102634 5/16"-18, G5

2шт.

3050129R1

LOCK WASHER

WASHER lock, 5/16 inch

5шт.

186272

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16"-18 NC x 4", grade 5

1шт.

3055574R1

WASHER,8.5mm ID x 19mm OD x 2.5mm Thk

flat, 5/16 inch

1шт.

179830

2шт.

2

3055999R1

GASKET

water pump carrier

1шт.

3

445686

PLUG

automotive square head, 3/8 inch NPTF

1шт.

4

444630

PLUG,Hex Hd, 1/2"-14

hex, pipe

2шт.

5

3228046R1

THERMOSTAT

1шт.

6

3132143R1

GASKET

water outlet flange

1шт.

7

3136052R1

ELBOW

water outlet

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex, 3/8 NC x 1-1/8 inch, grade 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
