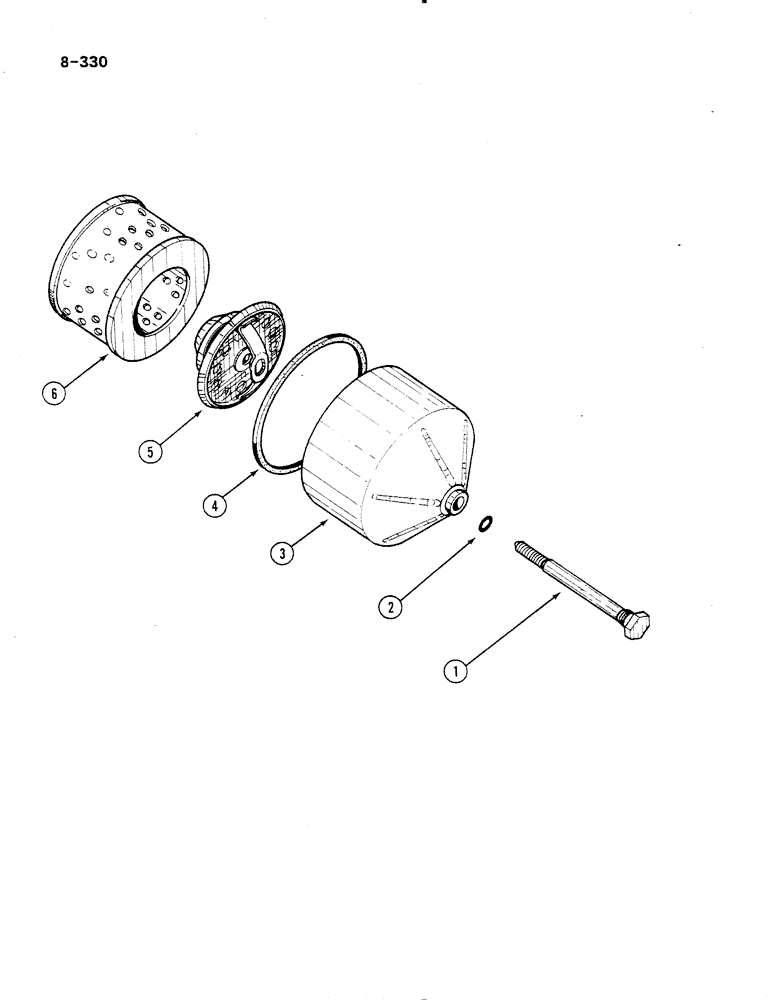

Запчасти Case IH 485 (8-330) - OIL FILTER, HYDRAULIC (08) - HYDRAULICS

1

68202C1

BOLT

BOLT center

1шт.

2

375271R1

O-RING,0.426" ID x 0.07" Width

seal, filter case, 7/16 x 9/16 inch, class 5

1шт.

3

68209C1

CASE

filter

1шт.

4

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

- Oil Filter Case

1шт.

5

405464R2

VALVE

AND SCREEN ASSEMBLY, by pass

1шт.

6

93413C1

HYDRAULIC OIL FILTER

KIT service, oil filter element, includes parts listed below

1шт.

405462R1

GASKET,147.4mm ID x 154.51mm OD x 2.36mm Thk

- Oil Filter Case

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 inch, class 5

1шт.

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 inch, class 5

1шт.

NSS

NOT SOLD SEPARAT

ELEMENT ASSEMBLY

1шт.
