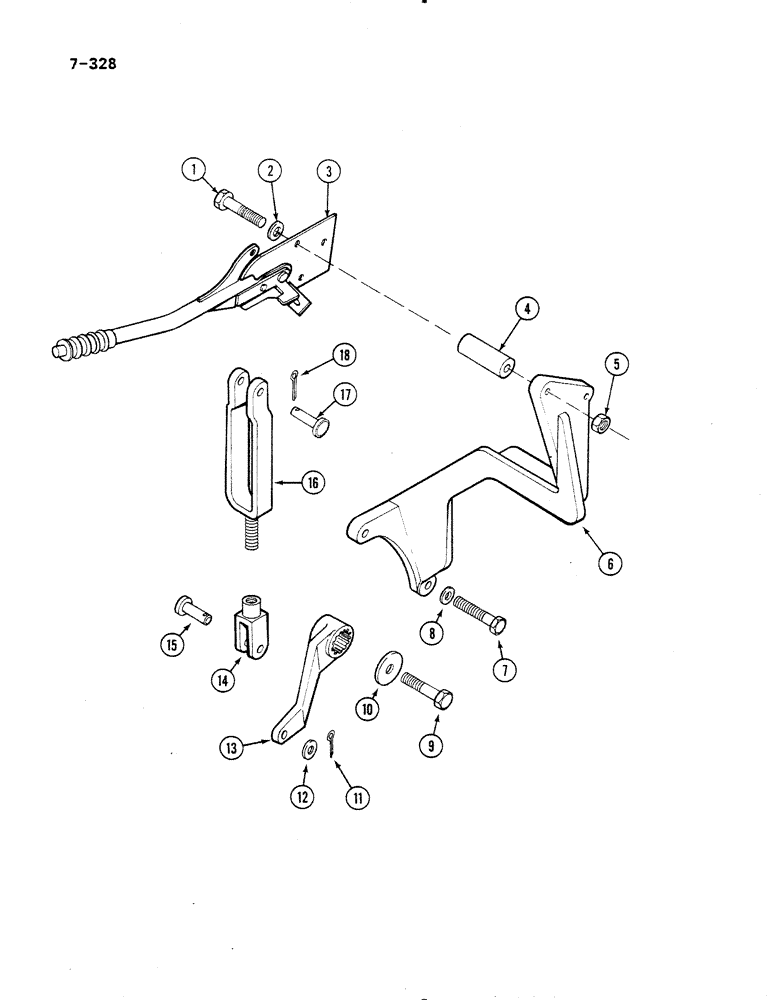

Запчасти Case IH 485 (7-328) - PARK LOCK LINKAGE, HEAVY DUTY, MFD TRACTORS, P.I.N. 18001 AND AFTER (07) - BRAKES

1

30016R1

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

hex, M8 x 90 mm

3шт.

2

30326R1

WASHER,M8 x 17.5 x 2, HT

plain, 8 mm

3шт.

3

1331093C2

LEVER

park brake, see Figure 7-322

1шт.

4

99436C1

SPACER

3шт.

5

30167R1

NUT,M8, Cl 10

- hex, 8 mm, class 10

3шт.

6

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

7

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

8

NSS

NOT SOLD SEPARAT

Not used in this application

1шт.

9

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW hex flange, 3/8 NC x 3/4 inch

1шт.

10

3102893R1

WASHER

plain, 10.4 x 50 x 3 mm

1шт.

11

934896R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

1шт.

12

30176R1

WASHER,M10 x 21.5 x 2.5, HT

plain, 10 mm

1шт.

13

99435C2

ARM

actuating

1шт.

14

1537272C1

CLEVIS

adjustable, M10, Replaces 30791R1

1шт.

15

30387R1

SPLIT PIN/SAFETY PIN

PIN clevis, 10 x 30 mm

1шт.

16

1330987C2

CLEVIS

pull

1шт.

17

31284R1

CLEVIS PIN

PIN clevis, 10 x 35 mm

1шт.

18

934896R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 mm

1шт.
