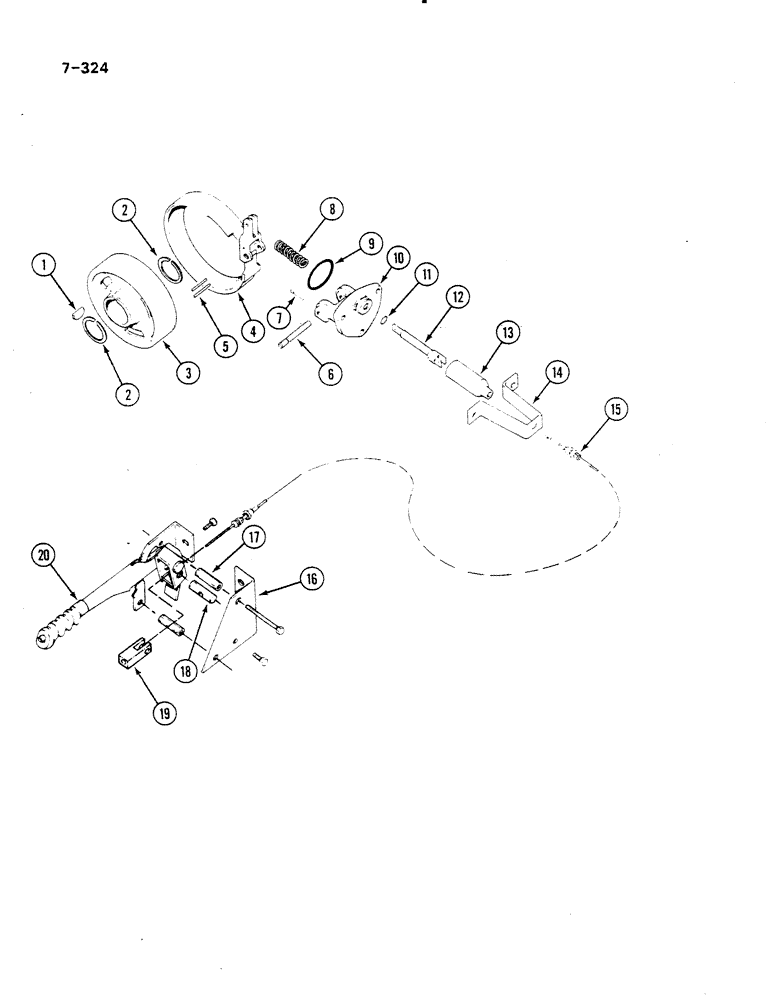

Запчасти Case IH 485 (7-324) - PARK LOCK (07) - BRAKES

1

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

327058R1

RING, SNAP

RING snap, brake drum retaining

2шт.

3

399828R1

HUB

brake drum

1шт.

4

401992R3

BAND

brake and actuating toggle, Includes: Ref. 5

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

PIN clevis, 5/16 x 31/32 inch

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

535544R1

PIN

anchor, 1/4 x 1-1/2 inch

2шт.

6

401998R1

PIVOT PIN

PIN pivot, parking brake

1шт.

7

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

1шт.

8

402000R1

SPRING

return, parking brake

1шт.

9

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 inch, class 5

1шт.

10

401997R2

PIVOT

parking brake

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex, 3/8 NC x 1-1/8 inch, grade 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

11

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 x 9/16 inch, class 5

1шт.

12

402014R1

PLUNGER

pivot, parking brake

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

PIN plain head, 5/16 x 15/16 inch

1шт.

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

13

402015R1

BOOT

cable protection

1шт.

14

401999R1

SUPPORT

BRACKET cable housing, anchor, lower

1шт.

15

3129788R2

CABLE ASSY.

CABLE parking brake

1шт.

144418H

LOCK NUT,5/16"-24, GB

NUT, LOCK, 5/16"-24, GB

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

PIN retaining, 3/8 inch

2шт.

16

1502240C1

SUPPORT

BRACKET support, handbrake

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex, 3/8 NC x 3 inch, grade 5

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex, 3/8 NC x 5/8 inch, grade 5

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

hex, 3/8 NC x 3/4 inch, grade 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

. 3/8"-16, G5

3шт.

17

11531N

SPACER,3/8" Pipe x 2"

standard pipe, 3/8 x 2 inch

2шт.

18

3129789R1

PIN,16mm OD x 50mm L

cable, park brake

1шт.

19

3129790R1

BLOCK

retaining, brake cable

1шт.

20

3129929R92

LEVER ASSY.

LEVER hand, park brake, see Figure 7-320

1шт.
