(7-322) - PARK BRAKE HAND LEVER, HEAVY DUTY, MFD TRACTORS, P.I.N. 18001 AND AFTER

Запчасти Case IH 485 (7-322) - PARK BRAKE HAND LEVER, HEAVY DUTY, MFD TRACTORS, P.I.N. 18001 AND AFTER (07) - BRAKES

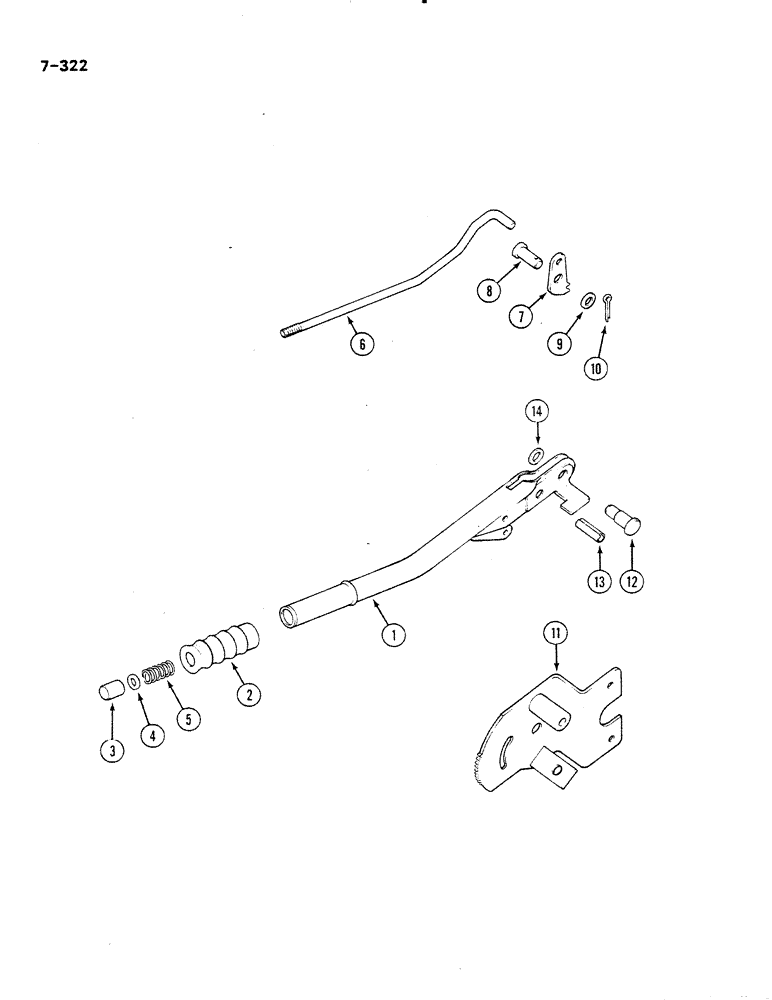

Схема запчастей Case IH 485 - (7-322) - PARK BRAKE HAND LEVER, HEAVY DUTY, MFD TRACTORS, P.I.N. 18001 AND AFTER (07) - BRAKES
5
7
4
8
2
9
3
11
14
6
13
1
12
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1331093C2

LEVER

park brake, Includes Ref. 1 - 14

1шт.

1

94265C5

LEVER

hand

1шт.

2

3125185R1

GRIP

lever, PVC

1шт.

3

3125177R1

BUTTON

release

1шт.

4

27306R1

WASHER,3/16" x 7/16" x .036", Stainless

plain, 0.188 x 0.438 x 0.036 inch

1шт.

5

3125184R1

SPRING

return, button

1шт.

6

94262C3

ROD

pusher

1шт.

7

94264C2

PAWL

1шт.

8

20687R1

CLEVIS PIN,1/4" x .609"

PIN clevis, 0.25 x 0.609 inch

1шт.

9

3125181R1

WASHER

pawl fulcrum

2шт.

10

3125183R1

PIN, SPLIT (COTTER)

PIN cotter, pawl fulcrum

1шт.

11

1331094C2

RATCHET

PLATE ratchet assembly

1шт.

12

94263C3

PIN

pivot

1шт.

13

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

14

1330750C2

SPACER

1шт.
