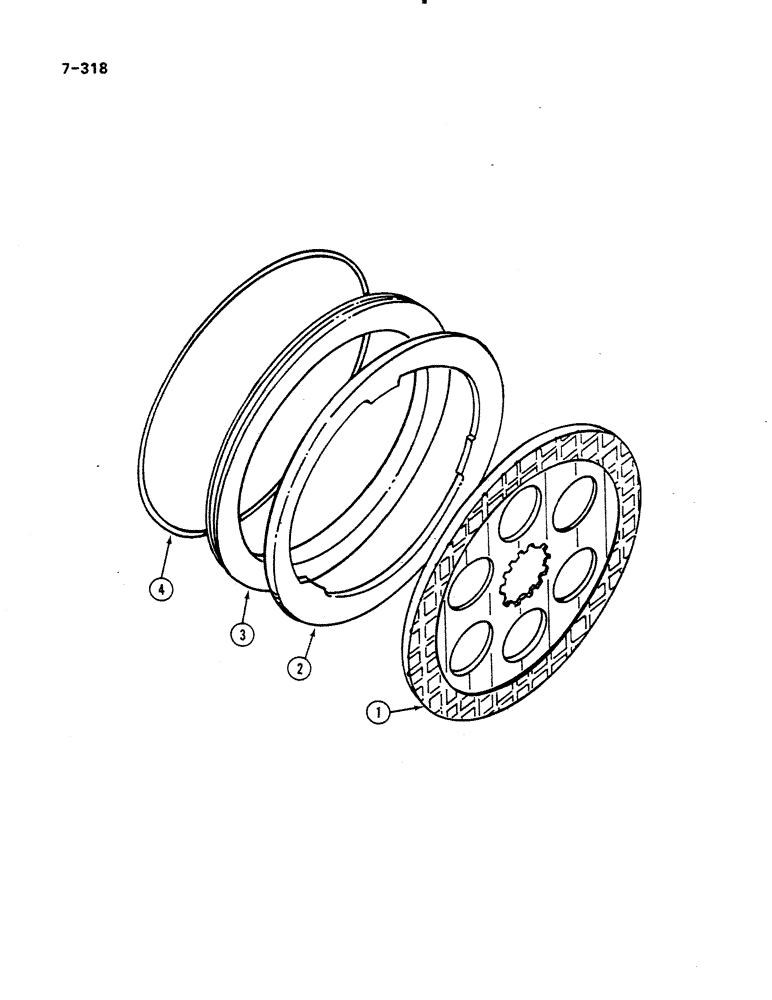

Запчасти Case IH 485 (7-318) - BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

DISC brake, center

2шт.

2

399736R3

RING

brake, assemble with numbered face inboard

2шт.

3

114621C1

PISTON

brake

2шт.

4

27659R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

10 x 1/8 inch, Replaces 343932R1

2шт.

539535R91

O-RING KIT

service, brake O-ring, includes parts listed below

1шт.

27659R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

hi-temperature, 10 x 1/8 inch, brake piston, Replaces 343932R1

2шт.

27658R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

hi-temperature, 8-1/4 x 8-1/2 inch, class 6, differential bearing carrier, Replaces 21472R1

2шт.

1536081C1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 8, 90 Duro

hi-temperature, 7-1/2 x 7-7/8 inch, differential bearing carrier seal, Replaces 289506R1

2шт.
