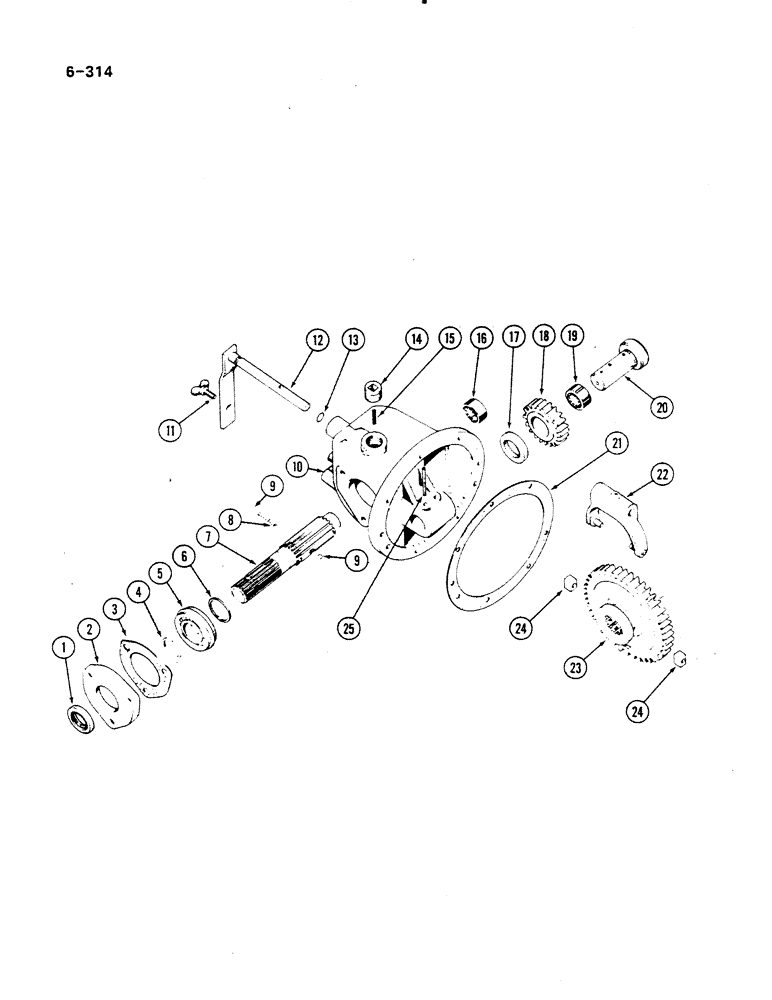

Запчасти Case IH 485 (6-314) - SIDE DRIVE POWER TAKE OFF ATTACHMENT, TRACTORS WITH SINGLE OR DUAL SPEED PTO, PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

1

381480R91

OIL SEAL

shaft, output

1шт.

1

534917R91

OIL SEAL

shaft, output, Serial Range: optional-381480R91

1шт.

2

529327R1

FLANGED BEARING

bearing, output shaft

1шт.

321316R1

SCREW

cap, hex, 1/2 NC x 1-1/4 inch

3шт.

3

529328R1

GASKET

retainer, output shaft bearing

1шт.

4

359141R1

RING, SNAP

RING retaining

1шт.

5

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball, output shaft

1шт.

6

573984R1

SNAP RING

RING snap, rertaining, sliding gear

1шт.

7

67131C1

SHAFT

output

1шт.

8

529329R1

SPRING

driven gear poppet

1шт.

9

17009R1

BALL

steel, 9/32 inch diameter

2шт.

10

529322R21

HOUSING ASSY.

HOUSING side drive PTO

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch, grade 5

7шт.

11

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW adjusting

1шт.

12

65772C1

SHAFT ASSY.

SHAFT selector fork, includes decal

1шт.

65771C1

DECAL

side PTO, caution instruction

1шт.

13

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 inch, class 5

1шт.

14

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG automotive square socket, 3/4 inch NPTF

1шт.

15

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

16

529323R91

BEARING, NEEDLE

BEARING needle, output shaft

1шт.

17

67130C1

SPACER

idler gear

1шт.

18

529325R1

GEAR, IDLER

GEAR side drive, PTO idler, 21 teeth

1шт.

19

287057R91

BEARING, NEEDLE

BEARING needle, idler gear

1шт.

20

67129C1

SHAFT

side drive, PTO idler gear

1шт.

21

528650R1

GASKET

side drive, PTO housing

1шт.

22

529331R1

FORK

serlector, drive gear

1шт.

23

529330R1

GEAR

side drive, PTO driven, 44 teeth

1шт.

24

318721R1

BLOCK

selector fork

2шт.

25

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.

66068C1

GEAR

CUP, IPTO clutch

1шт.
