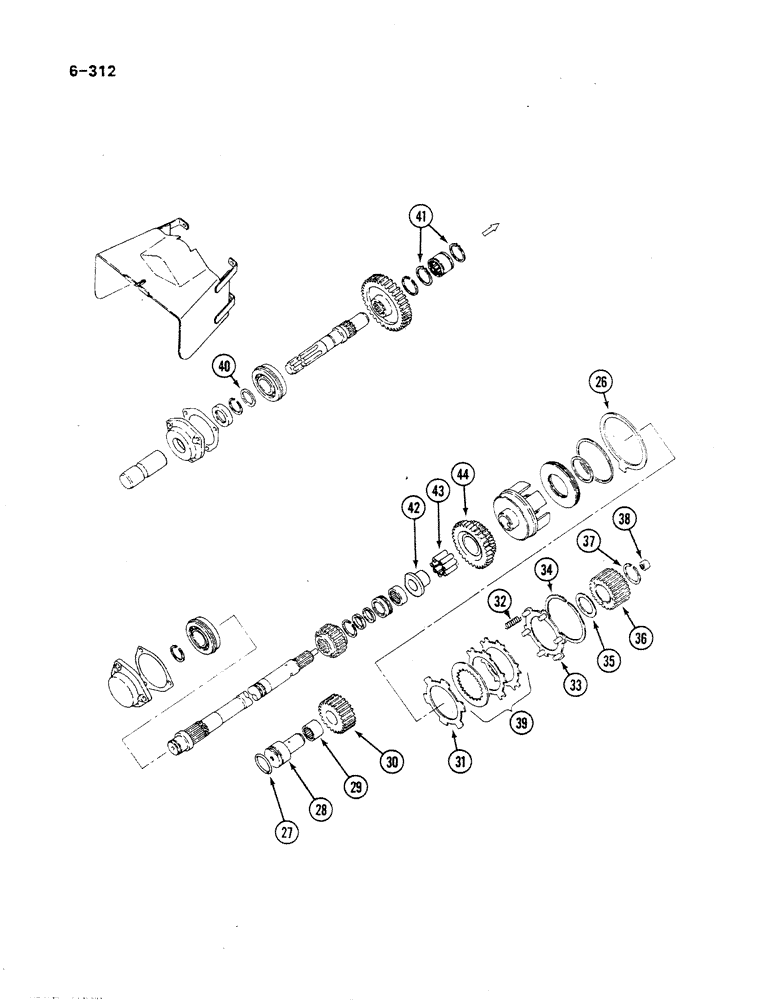

Запчасти Case IH 485 (6-312) - INDEPENDENT POWER TAKE OFF, SINGLE SPEED (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
26
404490R1
RING,140.25mm ID x 4.5mm Thk
IPTO brake, Serial Range: -18001
1шт.
26
82349C1
RING
IPTO brake, Start Serial: 18001
1шт.
27
379961R1
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
2-1/16 x 3/32 inch, class 5
1шт.
28
401726R1
SHAFT
IPTO idler
1шт.
29
570450R91
NEEDLE BEARING
needle, idler shaft
1шт.
29
528105R91
BEARING, NEEDLE
BEARING needle, Serial Range: optional-570450R91
1шт.
30
401727R1
PINION
GEAR idler, 24 teeth
1шт.
31
66185C1
CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk
piston return
1шт.
32
66182C1
SPRING
piston return
6шт.
33
66186C92
PLATE ASSY.
PLATE clutch backing
1шт.
19555R1
PIN,5/16" x 1", Coiled
6шт.
34
401720R1
CIRCLIP
RING retaining, backing plate
1шт.
35
401713R1
THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk
WASHER thrust
1шт.
36
66183C2
HUB ASSY.,45T
HUB clutch
1шт.
37
401756R1
SNAP RING,#206, 1.936", Ext
RING retaining, external, 1.936 inch
1шт.
38
533325R91
BEARING, NEEDLE
BEARING needle, PTO driven shaft, Serial Range: -18001
1шт.
82351C91
NEEDLE BEARING
BEARING needle, PTO driven shaft, Start Serial: 18001
1шт.
39
66193C91
PACKAGE
KIT service, clutch plate, includes disc, plate, O-rings and spring
1шт.
NSS
NOT SOLD SEPARAT
DISC
5шт.
NSS
NOT SOLD SEPARAT
PLATE
8шт.
401723R1
O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk
piston, inner
1шт.
401724R1
SEAL,0.551" ID x 0.07" Width
O-RING piston, outer
1шт.
66182C1
SPRING
piston return
6шт.
40
1500085C1
WASHER
1шт.
41
202307R1
SNAP RING,#206, Ext
Retaining, 1.906" #206, Ext
2шт.
42
82499C2
BUSHING
MFD, Start Serial: 18001
1шт.
43
82667C91
NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W
needle, MFD, Start Serial: 18001
1шт.
43
82794C91
NEEDLE BEARING
needle, Serial Range: optional-82667C91
1шт.
44
82666C1
GEAR
double idler, MFD, Start Serial: 18001
1шт.
1093097R1
PRODUCT GRAPHIC
DECAL, PTO speed
1шт.
Выбрано товаров: 30
