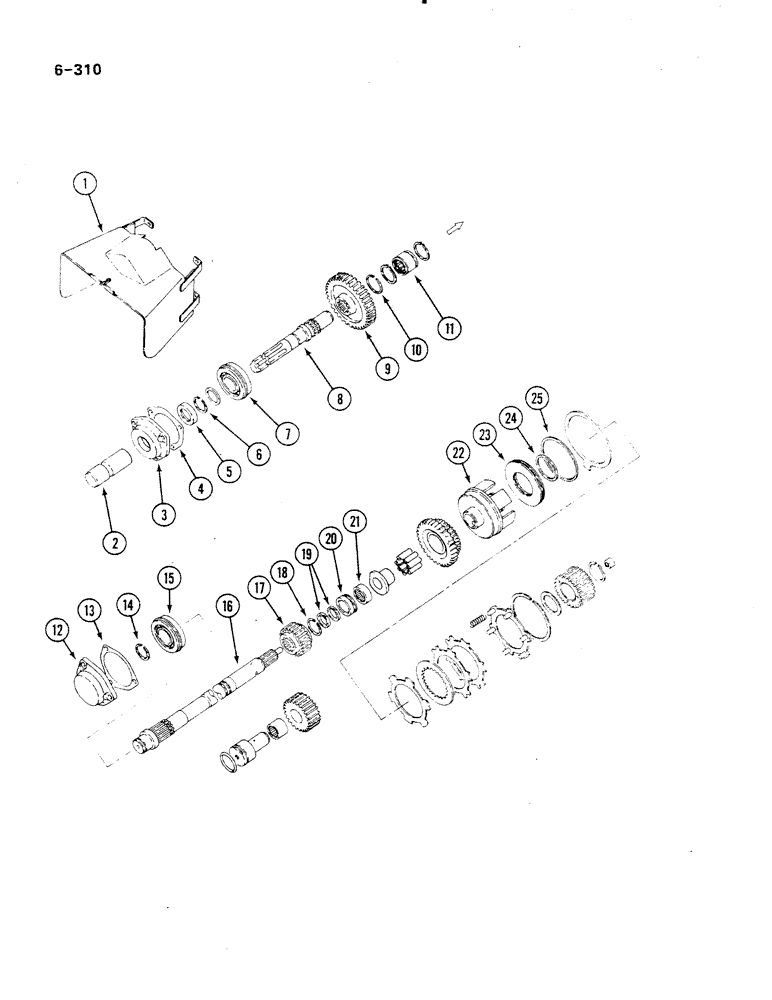

Запчасти Case IH 485 (6-310) - INDEPENDENT POWER TAKE OFF, SINGLE SPEED (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD - IPTO safety

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

2

3054841R2

TUBE

CAP - protection, IPTO safety

1шт.

3

1500086C1

FLANGED BEARING

- bearing, IPTO shaft

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

3шт.

4

399843R3

GASKET

- rear frame IPTO flange

1шт.

5

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft

1шт.

6

607186R1

SNAP RING,#156, Ext

1шт.

7

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball (Used with upper driven gear)

1шт.

7

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING - ball (Optional to 171082R91)

1шт.

8

1500087C1

SHAFT

- upper, IPTO output

1шт.

9

404237R1

PINION

GEAR - upper driven, 36 teeth

1шт.

10

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

1шт.

11

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

needle

1шт.

12

66191C1

FLANGED BEARING

bearing, IPTO shaft

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

hex, 3/8 NC x 7/8 inch, grade 5

3шт.

13

399843R3

GASKET

rear frame, IPTO flange

1шт.

14

607186R1

SNAP RING,#156, Ext

1шт.

15

171082R91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING ball, used with lower shaft drive gear, 22 teeth

1шт.

15

ST236

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BEARING ball, optional to 171082R91

1шт.

16

66189C1

SHAFT ASSY.

SHAFT, IPTO driving, Serial Range: -18001

1шт.

16

99463C1

SHAFT

IPTO driving, Start Serial: 18001

1шт.

17

404233R1

PINION

GEAR drive, lower shaft, 22 teeth

1шт.

18

336000R1

SNAP RING,#175, 1.640", Ext

RING retaining, external, 1.64 inch

1шт.

19

166972R1

RING

shaft sealing, Serial Range: -18001

2шт.

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

shaft sealing, Start Serial: 18001

2шт.

20

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

lower shaft, Serial Range: -18001

1шт.

20

93506C1

BUSHING

lower shaft, Start Serial: 18001

1шт.

21

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING needle, Serial Range: -18001

1шт.

21

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

needle, shaft, Start Serial: 18001

1шт.

21

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

needle, optional to 93500C91

1шт.

22

1335402C1

CUP

IPTO clutch, Serial Range: -18001

1шт.

617941R1

PIN,5/16" x 2", Coiled

, Serial Range: -18001

1шт.

22

82609C1

CUP

IPTO front clutch, Start Serial: 18001

1шт.

617941R1

PIN,5/16" x 2", Coiled

, Start Serial: 18001

1шт.

23

401722R1

PISTON

clutch

1шт.

24

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

piston, inner

1шт.

25

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING piston, outer

1шт.
