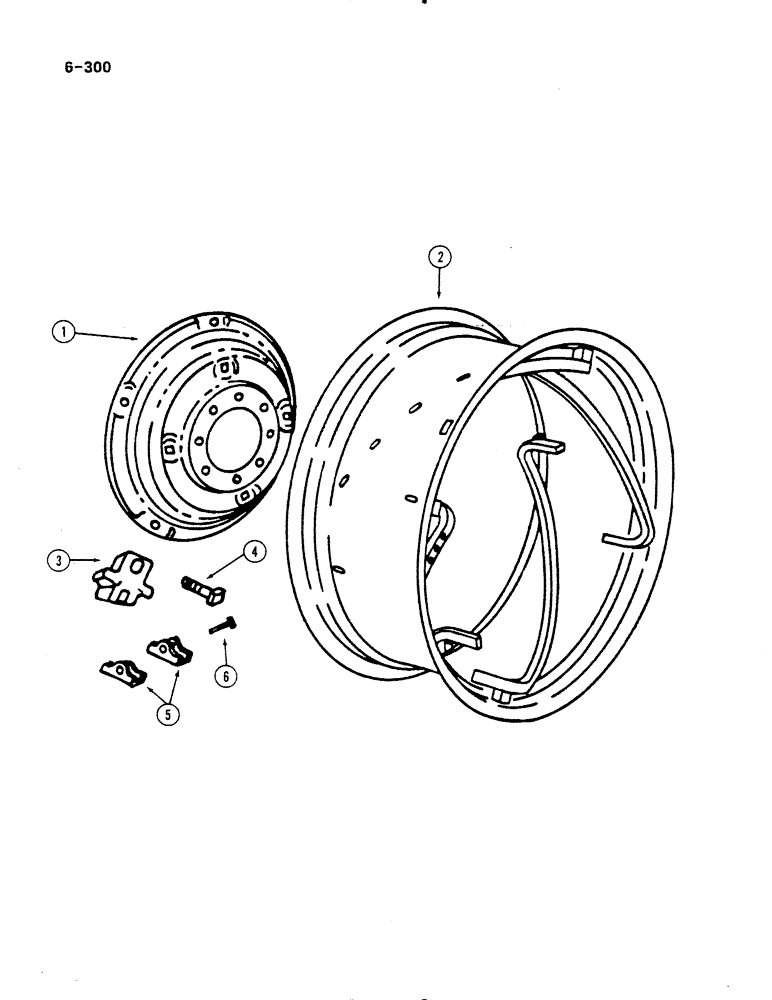

Запчасти Case IH 485 (6-300) - POWER ADJUSTED REAR WHEELS (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY, power adjusted rear, W12-28, Includes Ref. 1 - 6, utility tractors

2шт.

NSS

NOT SOLD SEPARAT

WHEEL ASSEMBLY, power adjusted rear, W14L-30, Includes Ref. 1 - 6, utility and all wheel drive tractors, Serial Range: -18001

2шт.

1

1282567C1

DISC, WHEEL

DISC formed, 28 inch diameter, utility tractors

1шт.

If looking for different disc, check the 1194 and the 885 David Brown power adjust rims.

1шт.

1

399002R1

DISC, WHEEL

DISC formed, 30 inch diameter, utility and all wheel drive tractors, Serial Range: -18001

1шт.

If looking for different disc, check the 1194 and the 885 David Brown power adjust rims.

1шт.

2

1282568C1

RIM

power adjusted wheel, W12-28, utility tractors

1шт.

2

1282566C1

RIM

power adjusted wheel, W14-30, utility and all wheel drive tractors, Serial Range: -18001

1шт.

3

399004R1

SHIN

CLAMP double ramp

5шт.

4

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT3 square head, 3/4 NC x 2-1/4 inch

5шт.

399006R1

WHEEL NUT

hex, 3/4 inch NC

5шт.

399007R1

WASHER

flat, 3/4 inch

5шт.

5

365327R2

STOP

BODY stop

1шт.

6

365326R1

SCREW

stop

1шт.
