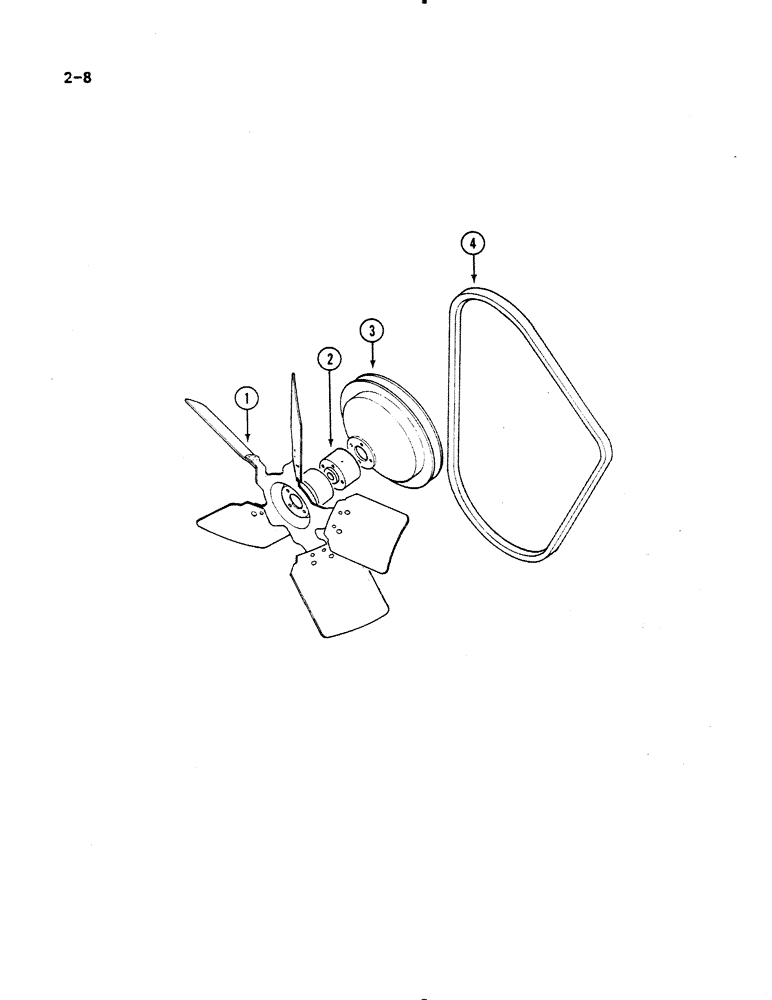

Запчасти Case IH 485 (2-008) - FAN (02) - ENGINE

1

1275810C1

FAN

engine cooling

1шт.

433065

BOLT,Hex, 1/4" - 28 x 3 1/2", Gr 5

- hex, 1/4 NF x 3-1/2 inch

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.051 inch

4шт.

2

403335R1

SPACER

fan

2шт.

3

401124R2

PULLEY

water pump

1шт.

4

3129140R1

V-BELT,13.70 mm W

Fan 13.70 mm W

1шт.
