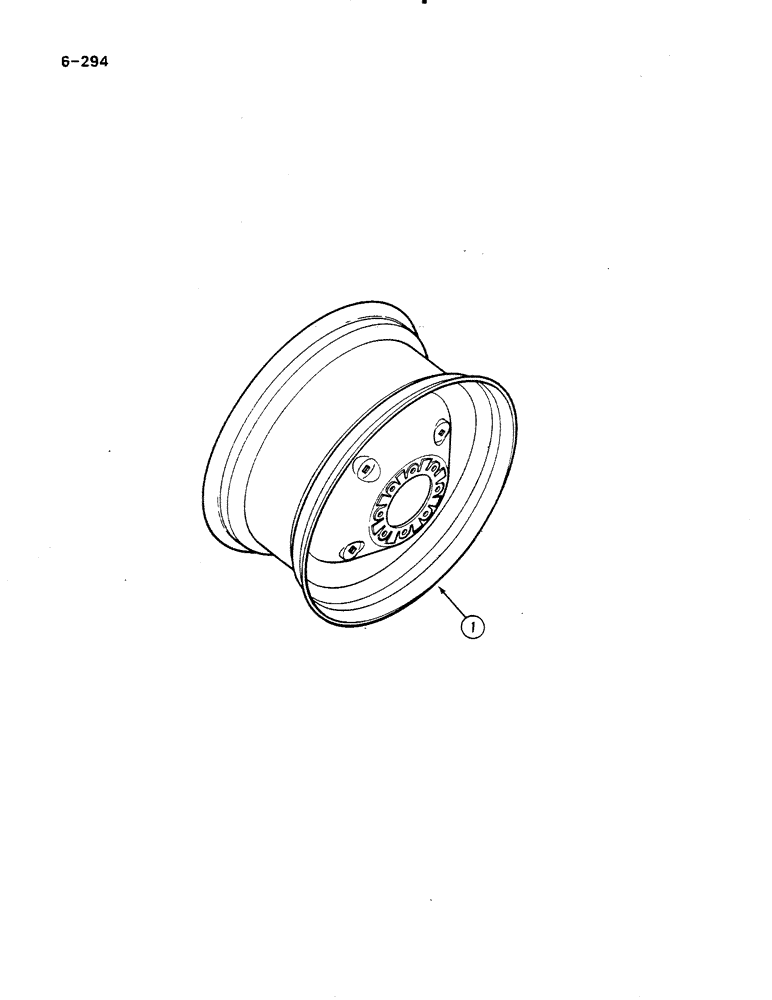

Запчасти Case IH 485 (6-294) - REAR WHEELS, 6 BOLT WHEEL TO RIM MOUNTING (06) - POWER TRAIN

1

374808R92

RIM

wheel, W12-24

2шт.

374806R1

DISC, WHEEL

DISC, 24 and 26 inch wheels

2шт.

1

1265033C92

RIM

wheel, W15L-24

2шт.

374806R1

DISC, WHEEL

DISC, 24 and 26 inch wheels

2шт.

27549R1

VALVE STEM

TR 618A

2шт.

1

3129777R1

RIM

wheel, DW16-26

2шт.

374806R1

DISC, WHEEL

DISC, 24 and 26 inch wheels

2шт.

27549R1

VALVE STEM

TR 618A

2шт.

417194C1

PLUG

valve hole

2шт.

1

361700R92

RIM

rear, W10-28, includes clamps

2шт.

361724R1

WHEEL DISC

DISC, 28 and 30 inch, rear wheels

2шт.

1265034C1

RIM

wheel, W11-28

2шт.

361724R1

WHEEL DISC

DISC, 28 and 30 inch, rear wheels

2шт.

1

363988R92

RIM

wheel, W12-28

2шт.

361724R1

WHEEL DISC

DISC, 28 and 30 inch, rear wheels

2шт.

1

1265036C1

RIM

wheel, W15L-28

2шт.

361724R1

WHEEL DISC

DISC, 28 and 30 inch rear wheels

2шт.

363800R2

BOLT,5/8" - 18 x 3 1/8"

square head, 5/8 NF x 3-1/8 inch, mounting hardware for above wheels

12шт.

225861

NUT,5/8"-18, G8

Mounting hardware for above wheels 5/8"-18, G8

12шт.

352777R2

WHEEL NUT

hex, 5/8 inch NF, optional to 225861, mounting hardware for above wheels

12шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, , Mounting hardware for above wheels 5/8"

12шт.

369370R2

WASHER

plain, 21/32 inch, mounting hardware for above wheels

12шт.
