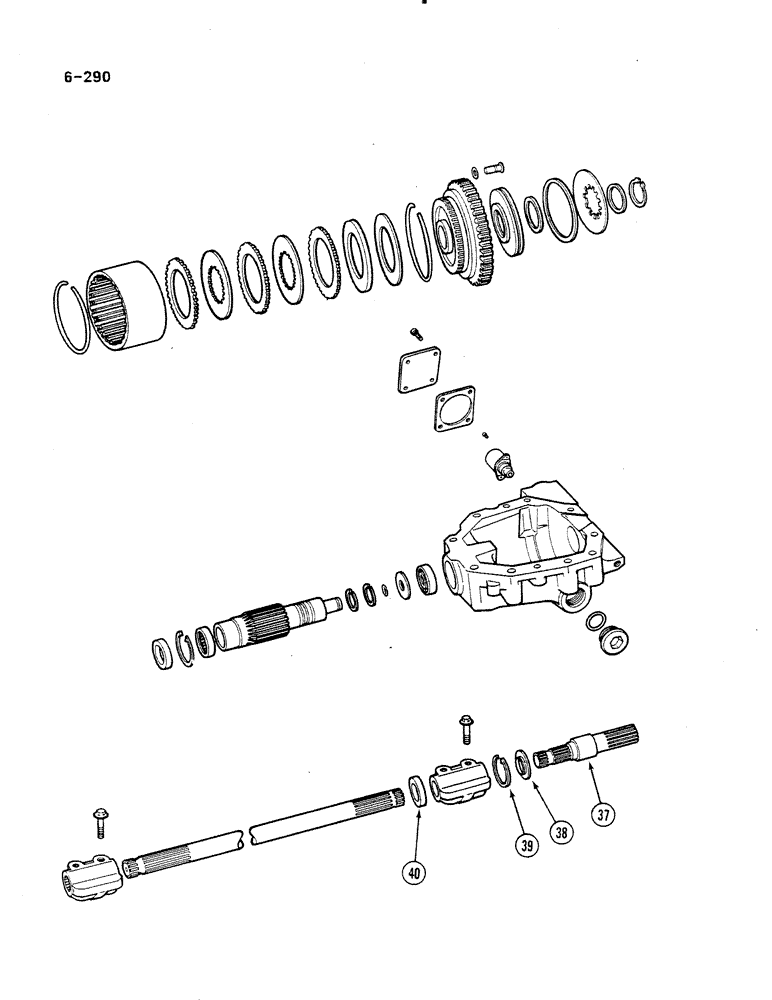

Запчасти Case IH 485 (6-290) - TRANSFER GEARBOX, 4 WHEEL DRIVE, MFD AXLE APL-325, P.I.N. 18001 AND AFTER (CONTD) (06) - POWER TRAIN

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 4 thru 36 in Figure 6-288 and Ref. 37 thru 39 in this figure

1шт.

37

81158C1

SHAFT

1шт.

38

81087C1

RING, SNAP

RETAINER

1шт.

39

934443R1

SNAP RING,M58, Int

RING retaining, internal, 61.74 mm

1шт.

40

82236C91

BEARING ASSY

ball

1шт.

82632C2

GASKET

transfer gear box

1шт.

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

25658R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 8

hex, 1/2 NC x 4-1/4 inch, grade 8

2шт.

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

hex, 1/2 NC x 3-1/4 inch grade 8

4шт.

26273R1

WASHER

flat, 0.531 x 1.062 x 0.134 inch

4шт.
